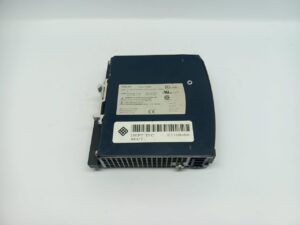

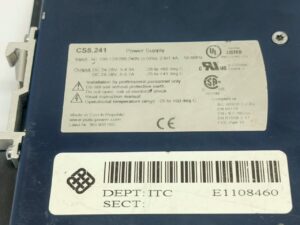

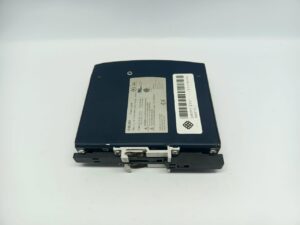

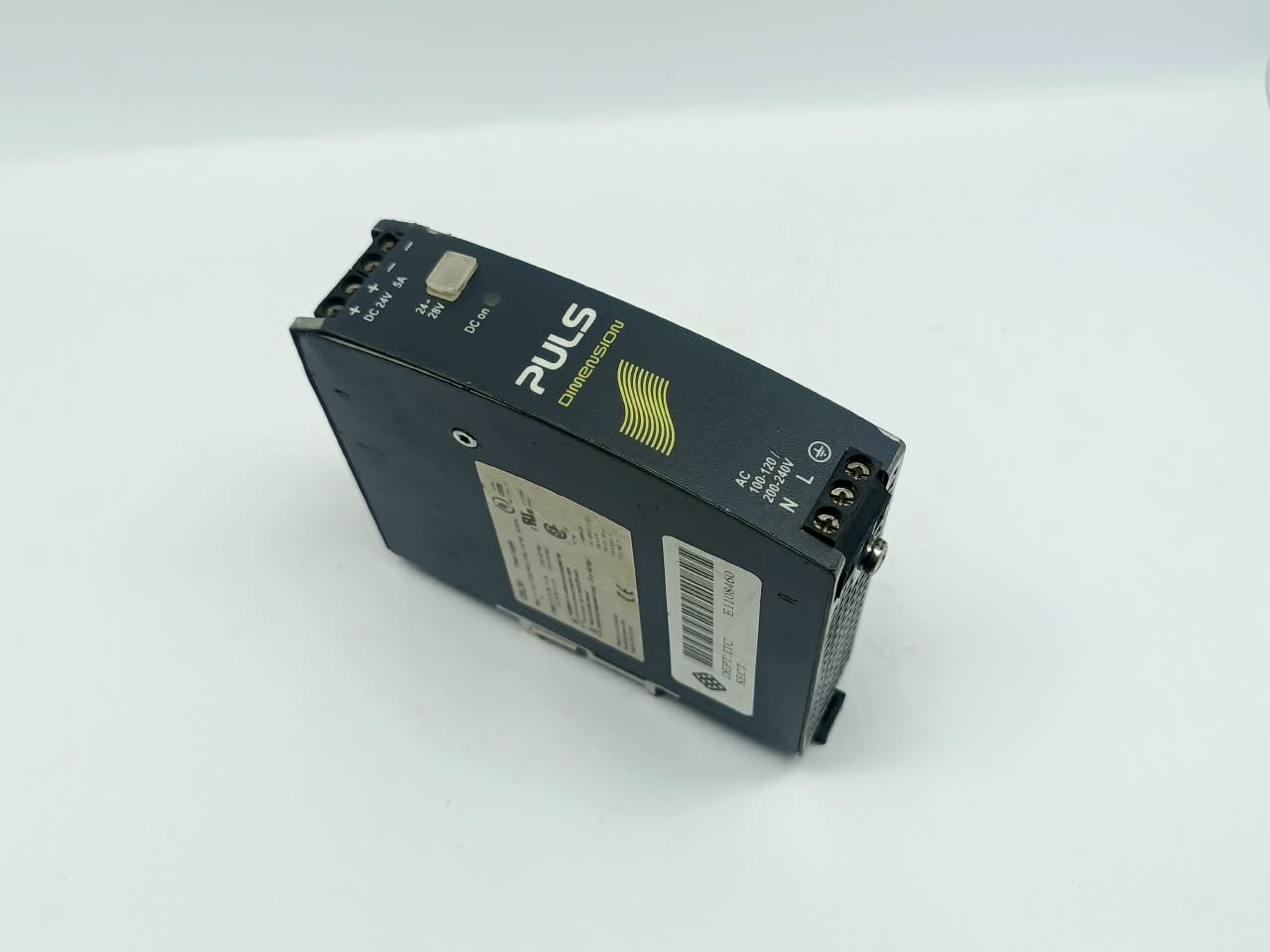

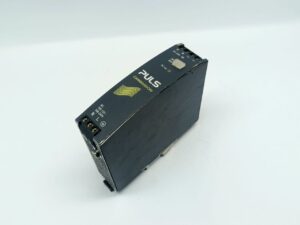

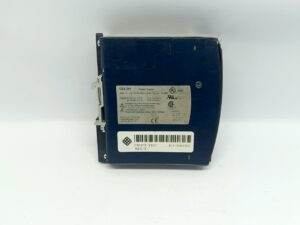

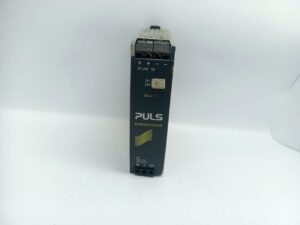

PULSE CS5.241 POWER SUPPLY Single Phase DIN Rail Switch Mode Power Supply
₨ 0
The PULS CS5.241 is a 120W single-phase DIN-rail switch-mode power supply from the cost-optimized DIMENSION C-Line series.
Key Technical Specifications
- Input Voltage: AC 100–120 V / 200–240 V (auto-select)
- Output Voltage: 24 VDC nominal (adjustable from 24 to 28 VDC)
- Output Current: 5 A at 24 V (4.3 A at 28 V)
- Output Power: 120 W (with a 20% PowerBoost reserve)
- Efficiency: Up to 90.2%
- Dimensions (W x H x D): 32 x 124 x 117 mm (1.26″ x 4.88″ x 4.61″)
- Weight: 500 g (1.03–1.2 lbs)
- Mounting: DIN-rail
- Operating Temperature Range: -25 °C to +70 °C (full power up to +60 °C; derating above +60 °C)
