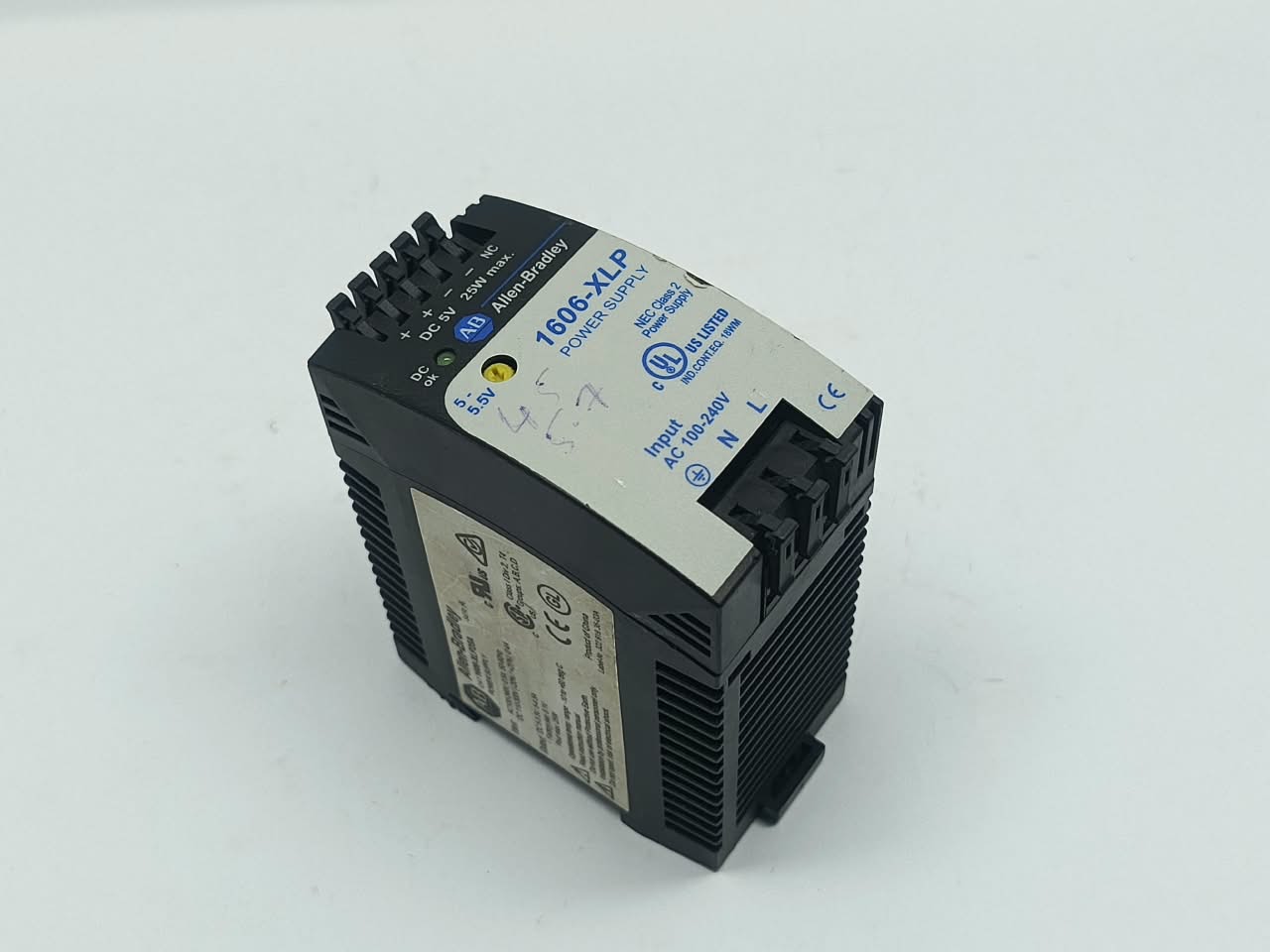

ALLEN BRADLEY 1606-XLP POWER SUPPLY
₨ 0
The Allen-Bradley Bulletin 1606-XLP Compact Switched Mode Power Supplies are single-phase, space-saving power supplies designed by Rockwell Automation to provide reliable DC power in industrial control panels.
Key Specifications
- Power Output Range: 15W to 100W
- Input Voltage: 100–240V AC (wide-range operational 85–264V AC) or 85–375V DC
- Output Voltages: Available in standard DC outputs including 5V, 12V, 24V, and 28V variants (such as 1606-XLP15B, 1606-XLP25A, 1606-XLP50E, and 1606-XLP100E)
- Efficiency: Typically ranges from 80% to 90.4% depending on the specific catalog model
- Operating Temperature: -10 °C to +70 °C (with power derating above +60 °C)
- Mounting: DIN-rail and wall-mountable options
- Enclosure & Protection: IP20-rated plastic housing with convection cooling and electronic short-circuit/overload protection
- Certifications: UL 508, UL 60950-1, CE, and select marine approvals (e.g., GL, RINA)
