WEIDMULLER PRO-M 8951330000 Switch Mode DIN Rail Power Supply

Name: WEIDMULLER PRO-M 8951330000 Switch Mode DIN Rail Power Supply
SKU: 4796
Availability: InStock

₨ 0

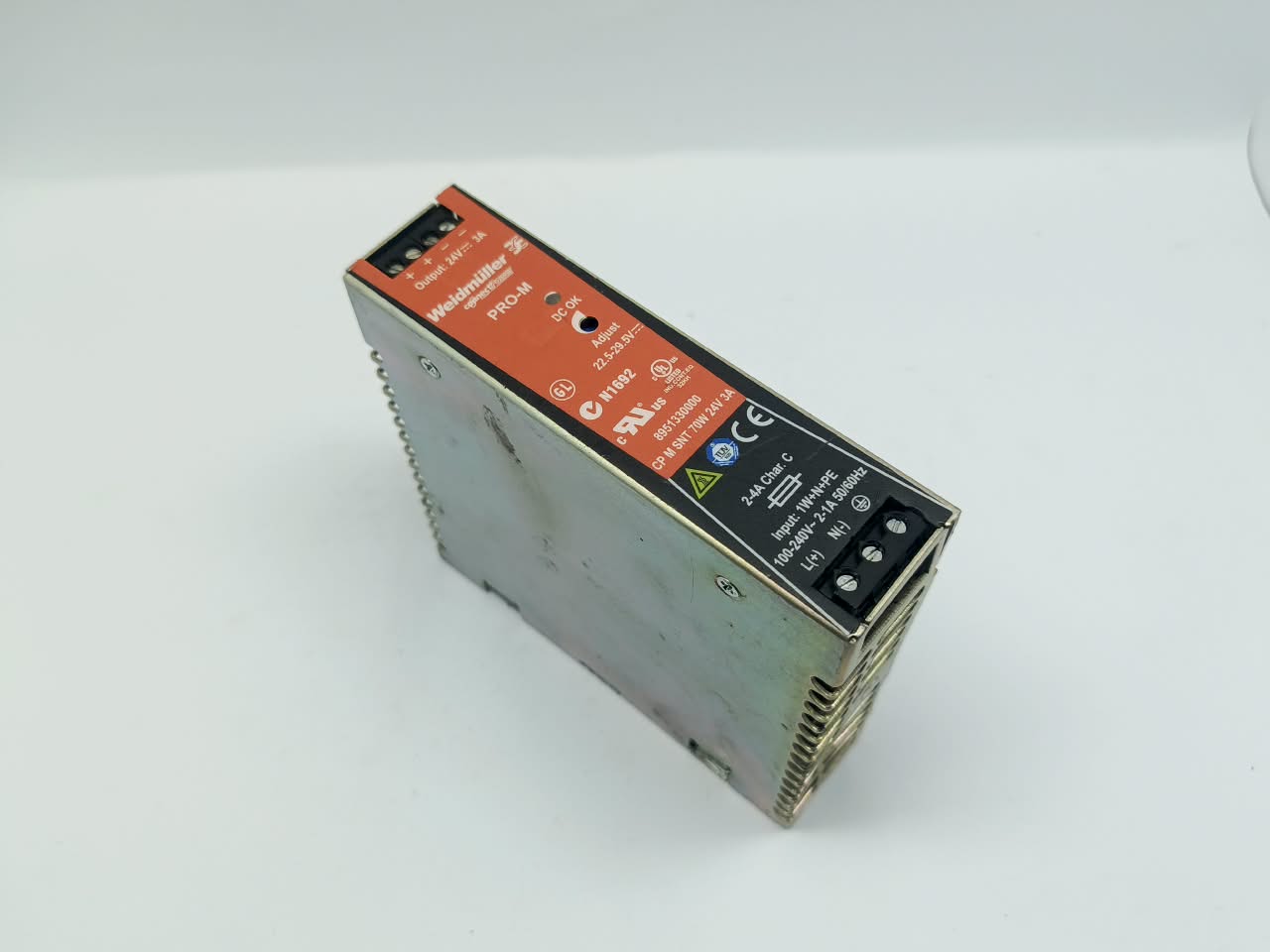

The Weidmüller PRO-M 8951330000 (Model: CP M SNT 70W 24V 3A) is a regulated, switch-mode DIN rail power supply designed for industrial automation and process control systems.

Please note that this specific model has been officially discontinued by the manufacturer (final order date was March 29, 2022). If you are replacing a faulty unit, Weidmüller recommends the PRO MAX 72W 24V 3A (Part Number: 1478100000) as the direct alternative product.

Key Technical Specifications

Power Output: 70 Watts rated power.
Output Voltage: 24 V DC nominal (adjustable via front potentiometer from 22.5 V to 29.5 V DC).
Output Current: 3 Amperes.
Input Voltage Range: Wide-range input supporting 85–264 V AC or 80–370 V DC.
Efficiency: 90% at 230 V AC.
Design & Enclosure: Slim, corrosion-resistant metal housing with an IP20 rating. Its thin footprint allows side-by-side installation on a standard TS35 DIN rail without requiring clearance gaps.
Dimensions: 130 mm x 33 mm x 125 mm (H x W x D).
Protection Systems: Equipped with short-circuit protection (SCP), over-temperature protection (OTP), and anti-overload protection (OPP)
