Omron ZX-ED02-S Inductive Displacement Smart Sensor Head | Armored Protective Spiral Tube

Omron ZX-ED02-S High-Accuracy Inductive Linear Measurement Sensor

Achieve precision sub-micron data tracking over your automated lines with the Omron ZX-ED02-S Smart Sensor Head. Operating as part of Omron’s premier ZX-E inductive displacement family, this cylindrical sensor head measures minute gap variations or structural warpage across magnetic and non-magnetic metals. It interfaces directly with modular ZX-series rail-mounted amplifier units to supply reliable linear metrics to control networks.

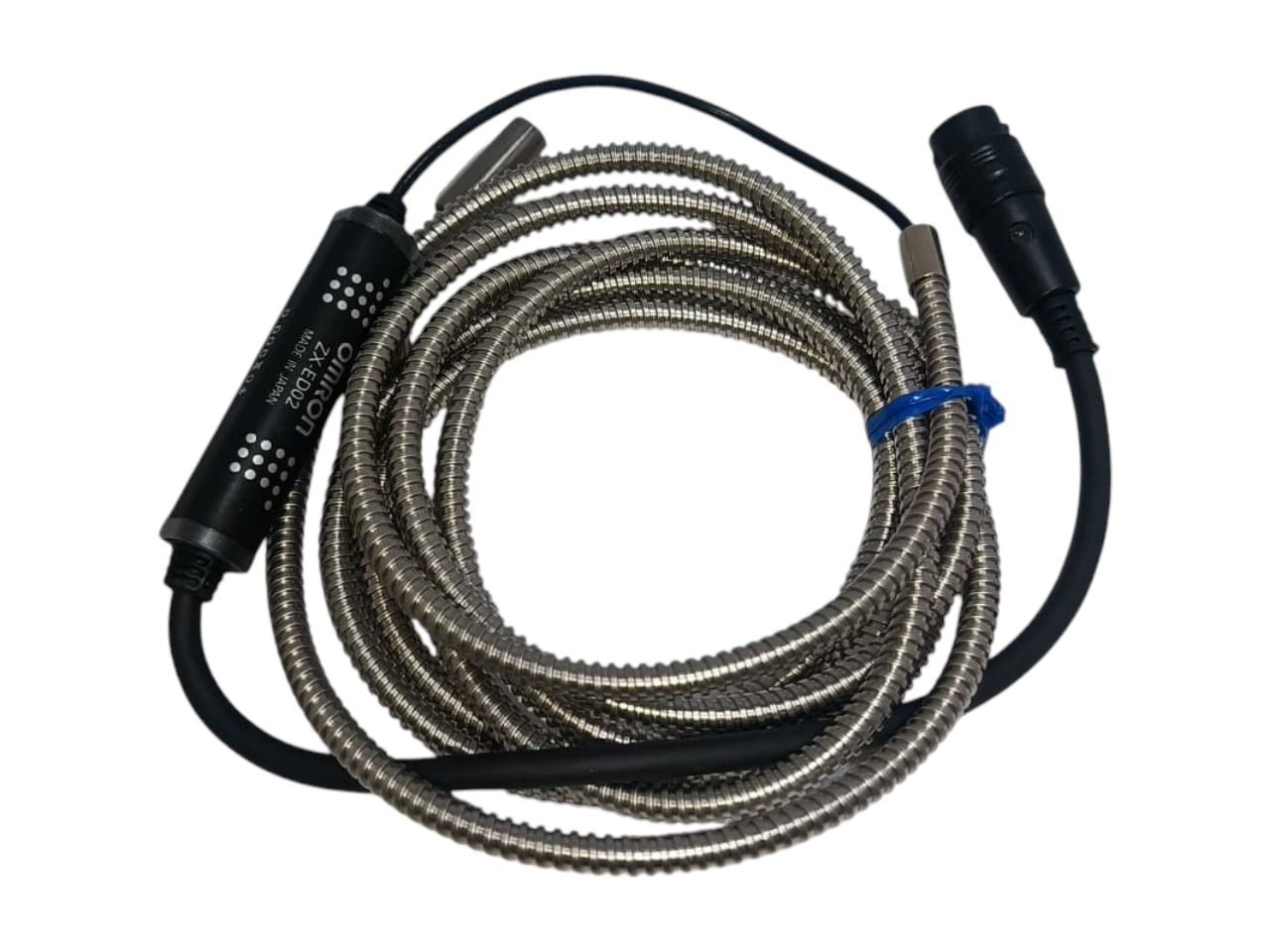

This specific variant includes a heavy-duty flexible metal spiral armor sheath over its 2m cable connector relay. This structural protection blocks hot metal shavings, sharp chips, and corrosive coolants from damaging internal conductors—making it highly recommended for CNC milling machine blocks, stamping presses, and automotive assembly lanes.

Technical Specifications:

• Brand: OMRON Corporation (Made in Japan)

• Model Nomenclature: ZX-ED02-S / ZX-ED02S

• Sensor Technology: Eddy-Current Inductive Linear Proximity / Displacement

• Measurement Profile Range: 0 mm to 2 mm

• Sensing Head Housing Profile: 8 mm Diameter Cylinder x 22 mm Depth

• Resolution Rating: 0.8 µm

• Linearity Accuracy: Full Scale (F.S.)

• Response Uptime Speed: High-speed 150 µs cycle capability

• Cable Configurations: 2-Meter Length with Flexible Metal Armored Spiral Shielding

• Environmental Protection Rating: Sensor Head body meets IEC60529 IP67 standards

• Box Inclusions: 1x ZX-ED02-S Sensor Head, 1x Preamplifier Inline Module, 1x Inline Mounting Bracket (ZX-XBE1), 1x Japanese/English Instruction Manual.

Key Features:

• Micron-Level Differentiation: Delivers ultra-precise distance monitoring, making it perfect for step-height measurements, metal plate thickness profiling, and component runout checks.

• Universal Material Selection Calibration: Allows software-based linearity tuning for non-magnetic metals (like aluminum or SUS stainless steel) when setup parameters are configured via the amplifier.

• Heavy Industrial Protection: Wrapped in a robust, protective metal outer spiral armor that provides reliable mechanical immunity against physical wear, pulling tensions, and abrasive factory debris.

• Modular Plug-and-Play Hub: The inline preamplifier tube carries a high-precision digital serial ID tag, allowing quick swap replacement without needing complex controller recalibration.
