Karismar AS 250504 Generator Power Supply & Control Module | Ver. 01/001/03/A2

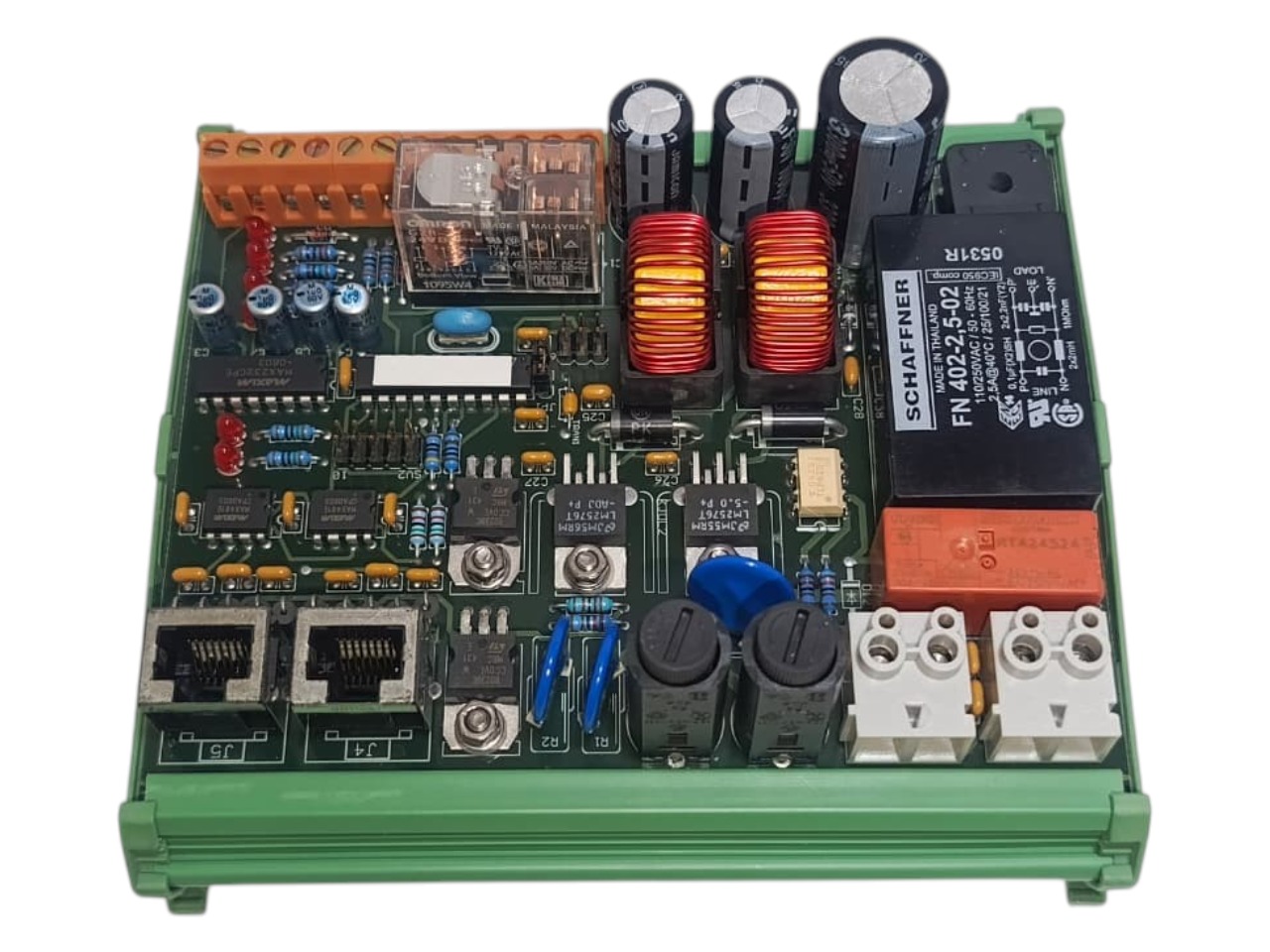

Karismar AS 250504 Industrial Generator Power Management Board

Enhance signal reliability and distribution stability inside your control cabinetry with the Karismar AS 250504 Power Module. Engineered to rigorous Scandinavian maritime and power plant standards, this multi-layered interface board handles incoming line filtration, voltage step-down regulation, and local communication routing on a single integrated footprint.

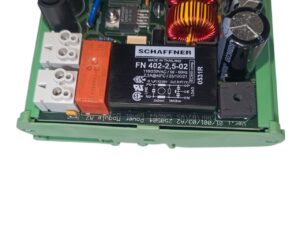

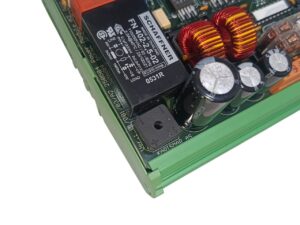

The card features a heavy-duty Schaffner FN 402 AC filter block coupled with large copper toroidal chokes and smooth electrolytic capacitors to thoroughly suppress electrical line noise and high-frequency harmonics before they reach sensitive controller circuits. For logic networks, the card integrates a Maxim MAX232 driver array alongside dual RJ45 interface jacks, allowing fast data loop-through and remote diagnostic hookups.

Technical Specifications:

• Brand: Karismar AS (Norway)

• Part Number / Hardware Code: 250504

• Firmware/Layout Revision: Ver. 01/001/03/A2

• Line Filter Component: Schaffner FN 402-2,5-02 ($110/250\text{V AC}, 50/60\text{Hz}, 2.5\text{A}$)

• Onboard Regulation: Dual LM2576T switching voltage step-down ICs

• Signal Relay Configuration: Clear-cased Omron industrial signal mini-relay

• I/O Connectivity: 2x RJ45 Communication Jacks (J4 & J5), 1x 7-Pin Screw Terminal Block, Dual Fuse Caps, Dual high-amperage terminal wire anchors

• Enclosure Profile: Open-profile ventilated plastic carrier tray with standard DIN-rail snaps

Key Features:

• Advanced EMI Suppression: The onboard Schaffner module prevents sudden load fluctuations or alternator spikes from disrupting downstream microcontroller systems.

• Dual Communication Matrix: The side-by-side RJ45 ports facilitate clean network daisy-chaining inside generator synchronization arrays without messy patch routing.

• Efficient Thermal Management: Active voltage regulation components are securely fastened down with heavy metal standoffs to optimize heat dissipation into the board copper ground planes.

• Local Status Diagnostics: Features a clear row of indicator LEDs and dedicated onboard fuse blocks to give maintenance engineers immediate visual confirmation of active power rails and system protection states.
