Omron F10-S30R Vision Pattern Matching Sensor Head | High-Speed CCD Optical Sensor

Omron F10-S30R High-Precision Vision Pattern Matching Sensor

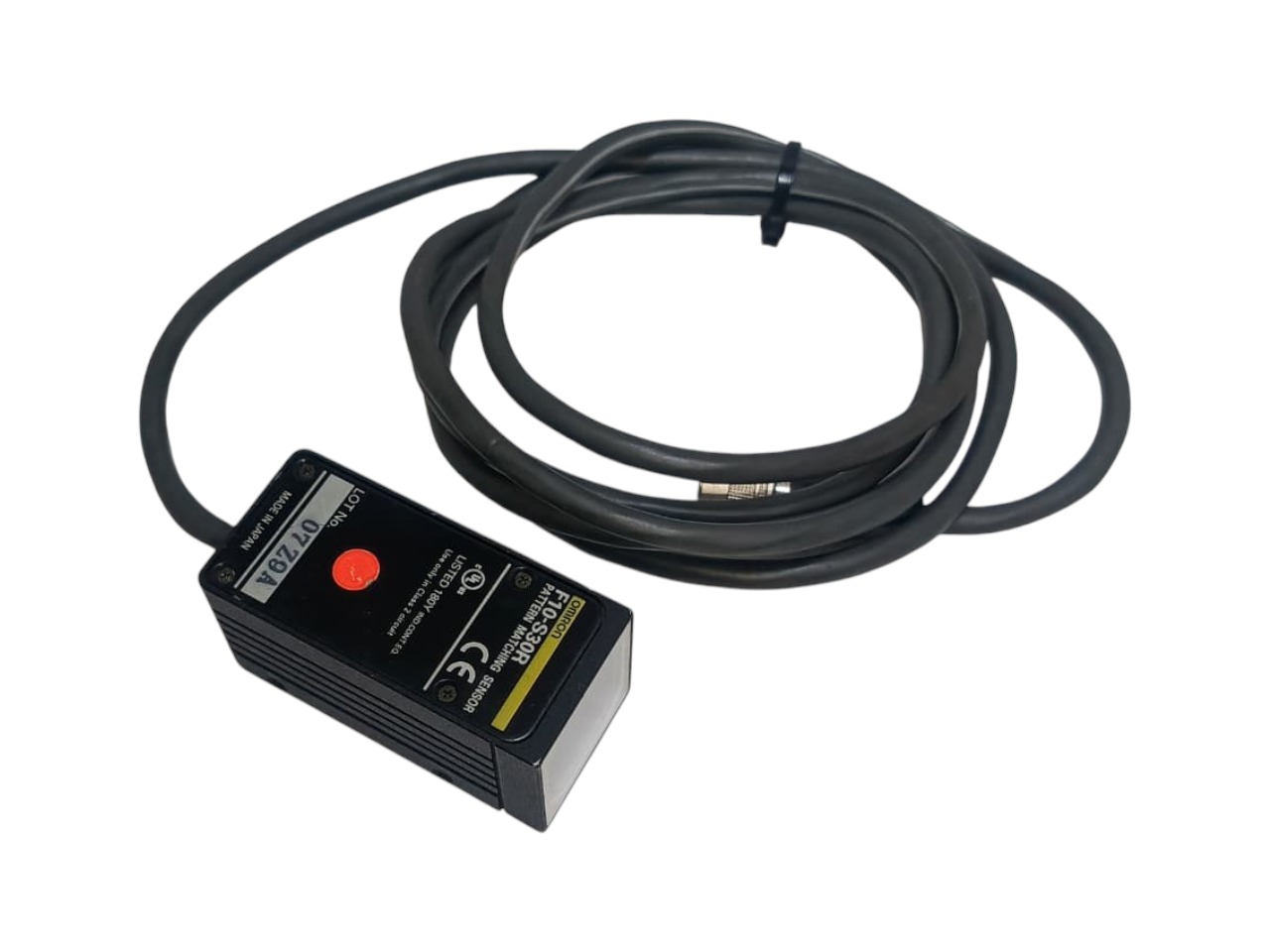

Automate your quality control setup and eliminate packaging mismatches with the Omron F10-S30R Vision Pattern Matching Sensor. Operating as a specialized, compact camera-based sensing head, the F10-S30R works in tandem with an external Omron F10 series amplifier/controller unit to identify target shapes, text layouts, and product orientations on moving conveyor systems.

The sensor head utilizes a highly integrated lens matrix ringed by 8 high-output red LEDs. This internal pulse lighting mechanism synchronizes seamlessly with the electronic shutter to produce bright, highly repeatable image exposures—independent of shifting ambient factory illumination.

Technical Specifications:

• Brand: OMRON Corporation (Made in Japan)

• Model Type: F10-S30R (F10S30R)

• Functional Classification: Optical Pattern Matching Vision Sensor Head

• Imaging Element: 1/5-Inch Solid-State CCD Camera Array

• Sensing Distance: $100 \pm 10 \text{ mm}$

• Sensing Field of View: $25 \times 20 \text{ mm}$

• Integrated Light Source: 8 Red LED Pulse Lights (1 Green Guide Alignment LED)

• Connectivity: Attached 2-Meter Multi-Pin Industrial Cable Shield

• Casing Evaluation: Rugged industrial build designed for dense mounting frames

Key Features:

• Advanced Pattern Recognition: Replaces unreliable contrast sensors by matching actual physical shapes and geometry profiles rather than simple color marks.

• Integrated Pulse Lighting System: The cluster of 8 built-in LEDs ensures high-contrast image capture even on metallic, reflective, or dark surfaces.

• Ultra-Fast Processing Compatibility: When paired with a matching F10 controller, it executes shape analysis in just milliseconds, keeping up with rapid factory assembly lines.

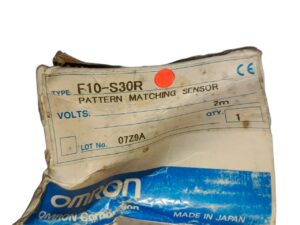

• New Old Stock (NOS): Shipped in original, factory-marked box packaging, protecting the internal optical lenses from any storage debris.
