Komeco ESP-2000 Speed Measuring & Loop Fail Monitor | Marine Engine Tachometer

Komeco ESP-2000 Marine Engine Speed & Tachometer Safety Monitor

Protect your vessel’s propulsion and auxiliary genset investments from catastrophic mechanical failures with the Komeco ESP-2000 Speed Measuring & Loop Fail Monitor. Engineered specifically for high-vibration marine machine rooms, this dual-purpose tachometer module continuously tracking engine speed metrics while executing real-time integrity sweeps across your sensor lines.

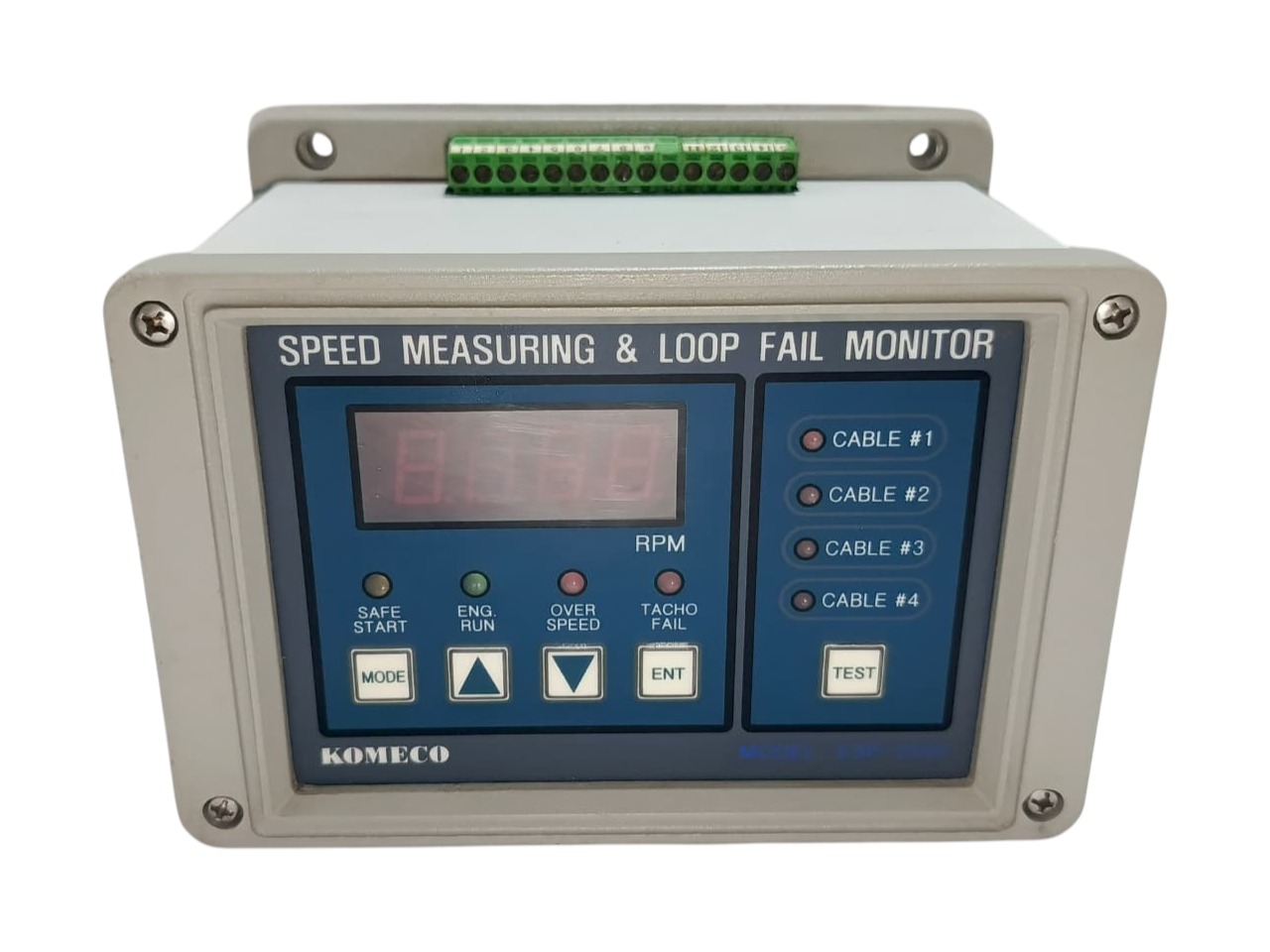

As displayed across the product views, the front user interface features robust tactile configuration keys (MODE, Up Arrow, Down Arrow, ENT, and TEST) that let shipboard engineers calibrate trip thresholds, view system max speeds, or run simulate safety tests on the fly.

Diagnostic Signal Architecture:

• Safe Start / Engine Run Indicators: Provides visual confirmation of safe starting interlocks and stable runtime velocity thresholds.

• Overspeed Trip Protection: Automatically activates integrated safety relays if the engine exceeds rated structural limits, enabling instant engine shutdown capabilities.

• Tacho Fail & Cable Loop Monitoring: The secondary diagnostic matrix features dedicated alert lamps for up to 4 separate sensor cables. If a magnetic pickup sensor line breaks, grounds out, or stops sending a signal, the system triggers an immediate channel warning.

Technical Specifications:

• Brand: KOMECO (Korea Marine Electronics Co.)

• Model Configuration: ESP-2000 / ESP2000

• Primary Function: Engine Speed Monitoring, Tachometer, and Overspeed Protection Switch

• Display Array: 4-Digit, High-Contrast Red LED Numeric Screen

• Sensor Channel Tracking: 4 Independent Channels (CABLE #1 through CABLE #4)

• Wiring Interfaces: Side-mounted pluggable green terminal blocks (Channels 1–14 on one bank, Channels 15–30 on the secondary bank)

• Enclosure Profile: Heavy-walled cast polymer industrial enclosure with pre-drilled flange corner eyelets for surface bulkhead mounting

• Target Automation Fields: Marine Diesel Propulsion Control, Shipboard Generator Sets, Heavy Industrial Turbocharger Assemblies, Marine Machinery Safety Panels

Key Features:

• Multi-Channel Redundancy: Tracks up to 4 sensors simultaneously, ensuring that even if an primary engine speed sensor fails, secondary channels keep your overspeed safety line fully active.

• Harsh Environment Shielding: Built inside a ruggedized, gasket-sealed housing assembly designed to reject engine room ambient humidity, airborne oil mist, and high structural heat loads.

• Removable Terminal Blocks: Double-deck pluggable green terminal block strips allow rapid swap updates during system diagnostic overhauls without pulling terminal wires out individually.

• Comprehensive Control Integration: Connects cleanly into standard vessel automation desks, emergency shutdown lines (ESD), and main engine log networks via its terminal relay connections.
