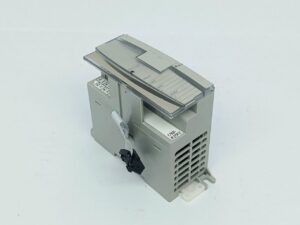

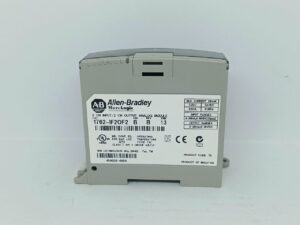

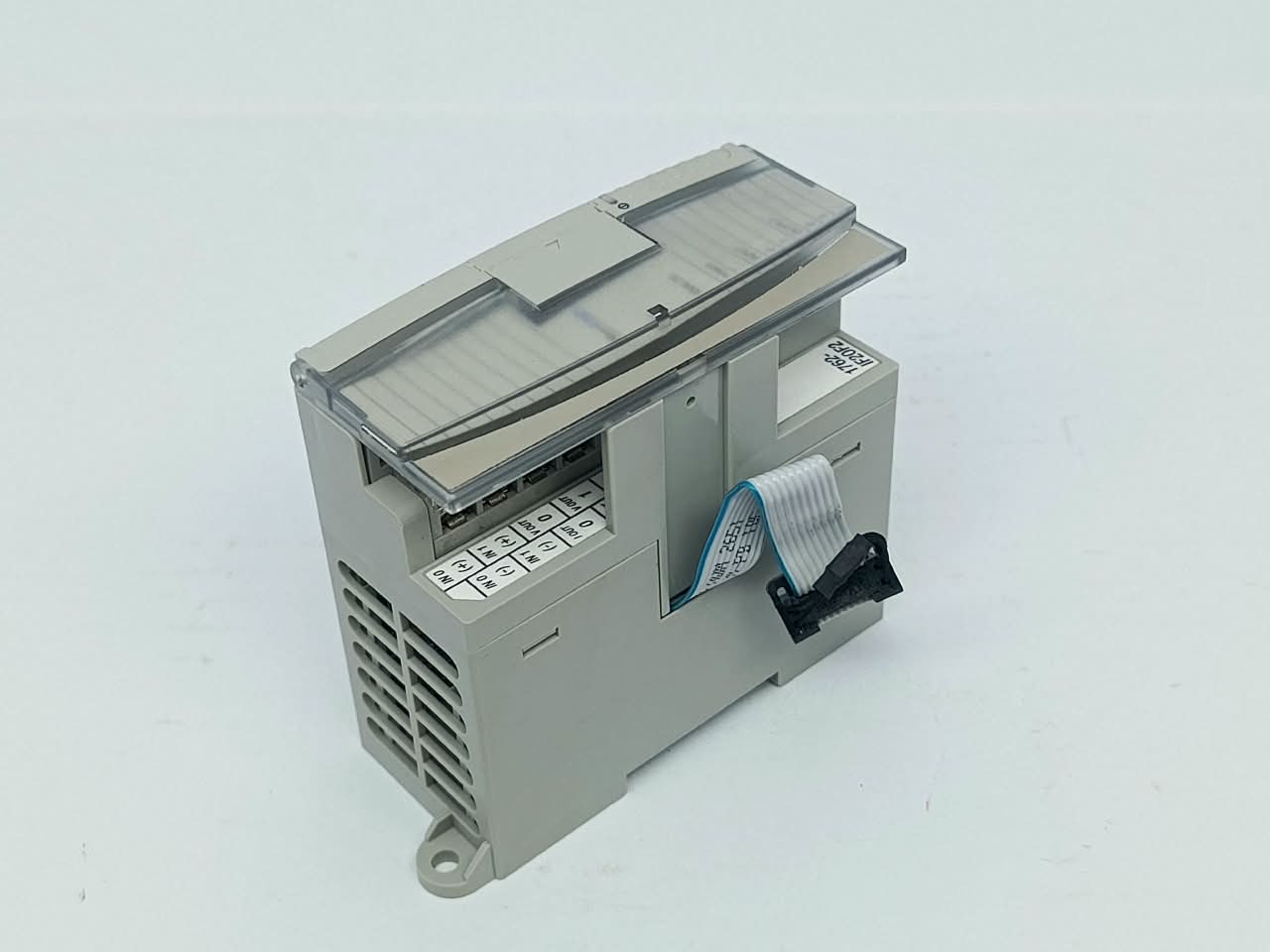

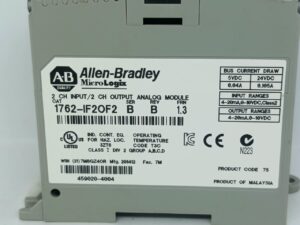

ALLEN BRADLEY 1762-IF2OF2 MicroLogix 1200 Expansion Module
₨ 0
The 1762-IF2OF2 is an Allen-Bradley MicroLogix 1200 expansion module that provides two analog inputs and two analog outputs.
Core Specifications
- Module Type: Analog Combination I/O (4 channels total: 2 inputs, 2 outputs)
- Compatibility: Designed for use with Rockwell Automation MicroLogix 1100, 1200, and 1400 programmable logic controllers via the 1762 I/O bus.
- Input Signals: Configurable for 0–10V DC voltage or 4–20 mA current (full range 0–10.5V DC and 0–21 mA).
- Output Signals: Configurable for 0–10V DC voltage or 4–20 mA current.
- Resolution: 12-bit
- Mounting: DIN rail or panel mount.
- Operating Temperature: -20 °C to 65 °C (-4 °F to 149 °F)
ALLEN BRADLEY 1762-IF2OF2 MicroLogix 1200 Expansion Module
