Siemens Simatic A60 Telemetry Control Module | S31043-K1500-X-8 35V-75VDC

Siemens Simatic A60 S31043-K1500-X-8 Marine Processing & Interface Module

Ensure unwavering logical tracking and system parameter verification across your vessel’s machinery networks with the Siemens Simatic A60 Control Module. Engineered to meet strict industrial and maritime cabinet requirements, this specialized sub-rack module handles continuous data processing, parameter monitoring, and auxiliary fault line routing without risk of signal degradation in high-interference environments.

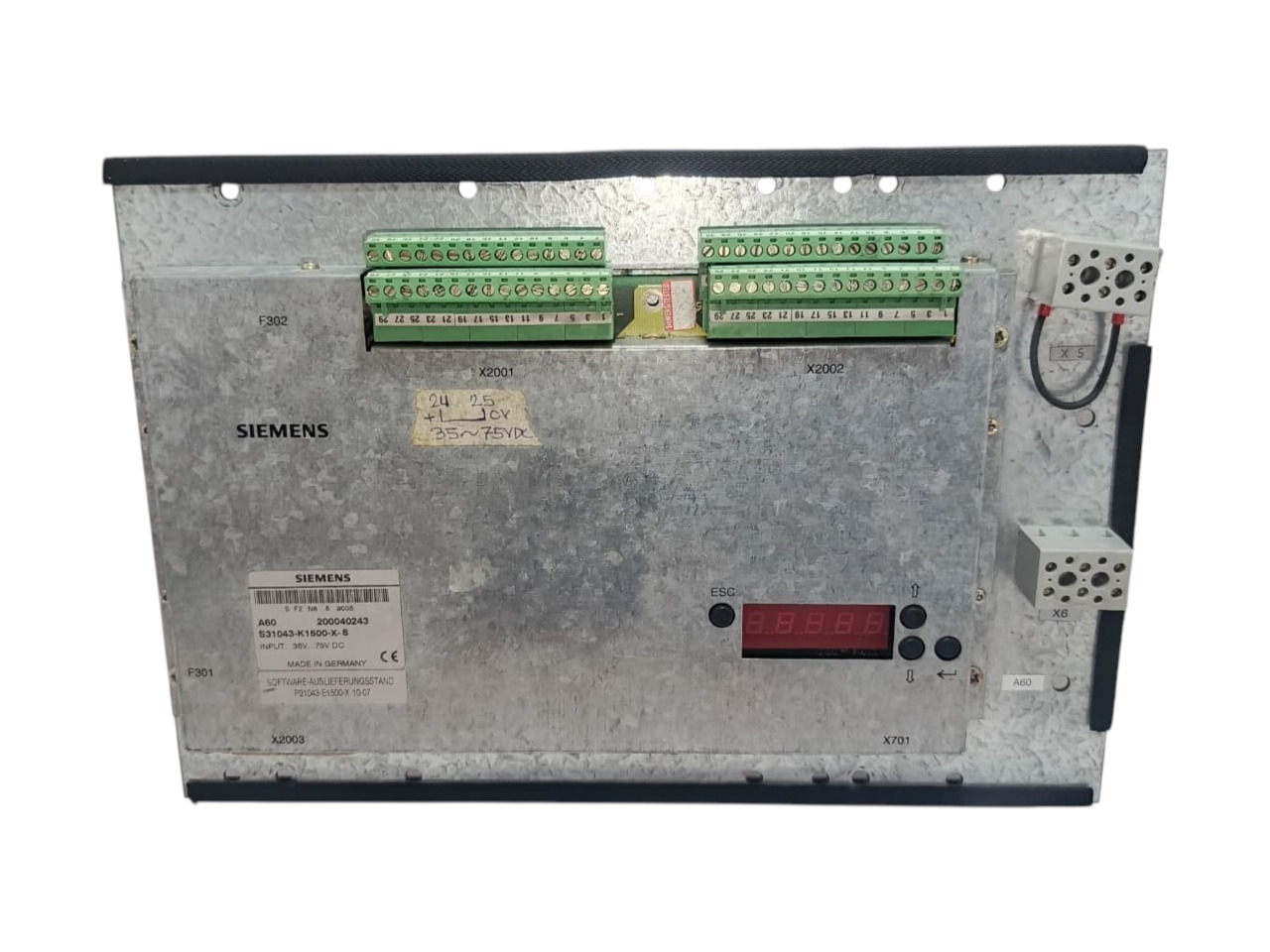

As displayed across the multi-angle views, the ruggedized galvanized metal chassis houses a front-facing numeric tracking matrix featuring a 5-digit bright red LED display. This screen is paired with discrete programming pushbuttons to let technicians audit system faults, change local parameter offsets, or force emergency logic overrides directly from the panel face.

The edge configuration profile includes robust communication arrays and multi-point terminal hubs:

• Main Pluggable I/O Terminal blocks (X2001 & X2002): Dense, removable green terminal connectors structured for clean field wire tracing and rapid module swap-outs without individual terminal re-wiring.

• Serial Communications Base (X2003): Outfitted with a heavy-duty 25-pin D-sub serial interface connector along the lower chassis edge for robust master-bus telemetry or programming hookups.

• Auxiliary Power Blocks (X5 & X6): Side-mounted heavy wire anchors with pre-routed wiring jumpers designed to stabilize power delivery rails.

Technical Specifications:

• Brand: SIEMENS (Made in Germany)

• Product Line: Simatic Series System Component

• Model Designation: A60

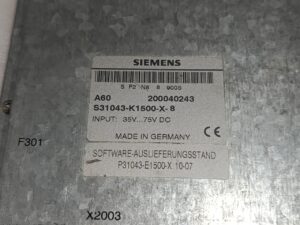

• Manufacturer Part Number: S31043-K1500-X-8 (S31043K1500X8)

• Hardware Register ID: 200040243

• Software Release State: P31043-E1500-X-10-07 / 10-07

• Rated Operational Input Supply: 35V…75V DC

• Local Interface Display: 5-Digit Segmented Red LED Matrix (X701)

• I/O Connectivity: 2x Pluggable Green Dual-Row Terminal Strips, 1x DB25 Serial Bus Connector (X2003), 2x Heavy Duty Power Feed Blocks (X5, X6)

• Chassis Mounting: Heavy-gauge galvanized metal flush plate with perimeter pre-drilled install slots

• Target Industries: Marine Control Desks, Main Switchgear Automation Panels, Power Management Systems (PMS), Industrial Substation Racks

Key Features:

• Wide-Tolerance DC Power Rail: Designed to operate smoothly anywhere between 35V and 75V DC, absorbing sudden alternator load changes or battery voltage drops common to shipboard auxiliary grids.

• Deterministic Real-Time Diagnostics: The front segment screen and menu buttons allow ships’ engineers to complete rapid hardware debugging, network status verification, and error checking directly at the panel.

• Galvanized Marine Corrosion Defenses: The heavy zinc-coated galvanized steel chassis plate acts as a passive shield against ambient engine room humidity, damp air, and electromagnetic interference (EMI).

• High-Integrity Maintenance Design: Dual-tier pluggable terminal blocks and integrated strain isolation points allow swift replacement maintenance during critical shipyard overhauls or offshore servicing.
