Elektronik-Apparatebau E.J. Harder SM 8 Fault Signaling Module | 24V AC/DC Marine Protection Controller

E.J. Harder SM 8 Marine Machinery Fault Monitoring Module

Protect critical shipboard systems from unmonitored failures with the Elektronik-Apparatebau E.J. Harder SM 8 Signaling Module. This specialized German electrical component functions as a ruggedized hardware supervisor, monitoring discrete dry contact sensor switches across your diesel generators, bilge pumps, or steering gear blocks to trip local indicators immediately when a fault state crosses line thresholds.

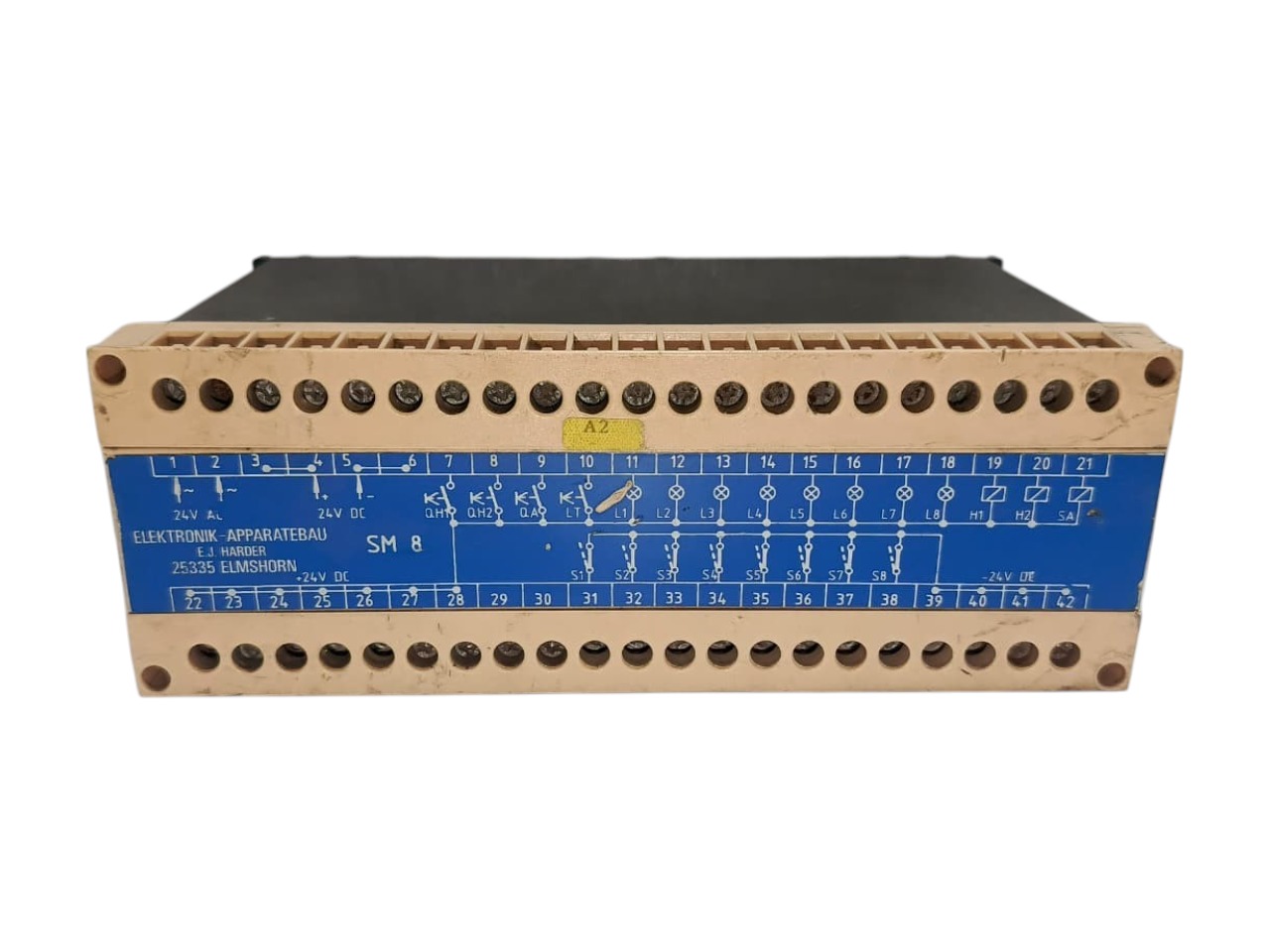

The front blue control face acts as an integrated electrical wiring blueprint, showing exactly how current flows through internal diagnostics. It maps terminal pins 1 through 42 into distinct logic regions:

• Power Feeding Links (Pins 1–5): Accommodates dual standalone power feeds—allowing terminal configurations for both alternating current setups (24V AC on pins 1-2) and direct current auxiliary links (24V DC on pins 4-5).

• 8-Point Monitoring Matrix (Pins 31–38): Houses 8 independent contact inputs (S1 through S8) designed to link with external safety machinery limit sensors, thermostats, or pressure switches.

• Relay & Lamp Drivers (Pins 7–21): Channels incoming faults directly to output indicators like acknowledgement loops, flashing status bulbs (L1 to L7), master siren sounders (SA), or auxiliary shutdown solenoids (H1, H2).

Technical Specifications:

• Brand: Elektronik-Apparatebau E.J. Harder (Elmshorn, Germany)

• Module Type Configuration: SM 8 (Störmeldemodul / Fault Monitoring Block)

• Operational Voltage Range: Dual 24V AC / 24V DC Input Compatibility

• Monitoring Channels: 8 Independent Sensor Control Paths

• Terminal Block Footprint: 42-Pin Dual-Row Integral Tunnel Screw Clamps (Pins 1–21 Upper, Pins 22–42 Lower)

• Chassis Build: Heavy-duty, high-insulation industrial plastic tracking block

• Target Automation Applications: Marine Engine Room Safety Panels, Localized Pump Alarm Boxes, Auxiliary Alternator Synchronization Frameworks, Main Switchgear Warning Arrays

Key Features:

• Pure Hardware Logic Reliability: Relies on deterministic electro-mechanical or solid-state discrete routing rather than microprocessors, ensuring the alarm system cannot freeze or suffer software crashes during emergency power drops.

• Flexible Dual-Power Rails: Accepts both AC and DC wiring inputs seamlessly on dedicated front pins, letting you deploy it into a wider variety of vessel configurations without adding external rectifier modules.

• Clear Blueprint Face Identification: The crisp structural diagram screen printed directly on the front plate prevents manual installation errors, allowing your crew to verify wiring loops at a glance without hunting down paper folders.

• Secure Double-Row Terminal Sockets: Heavy-duty, deep tunnel terminal slot arrays protect copper conductors against persistent maritime vibrations, minimizing structural contact corrosion and false trip flags over decades of continuous service.
