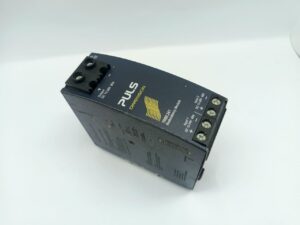

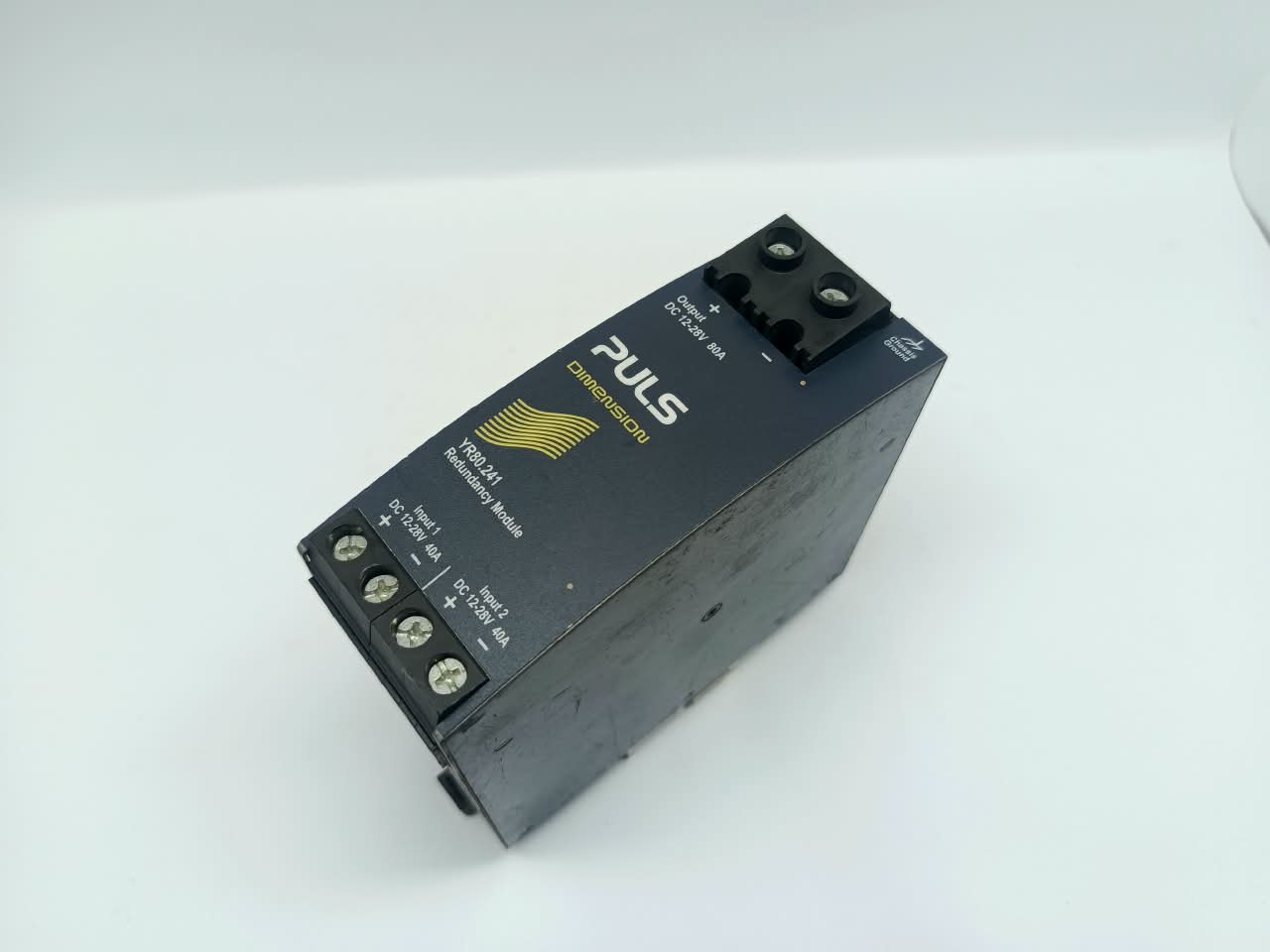

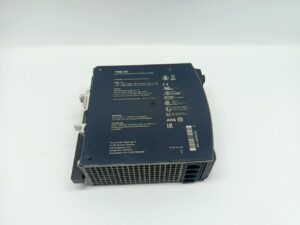

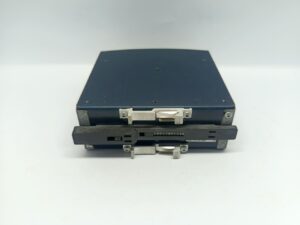

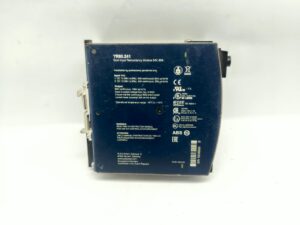

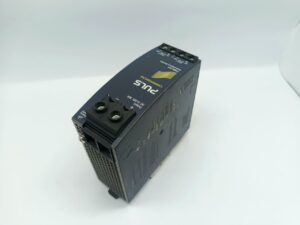

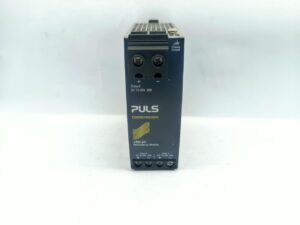

PULS YR80.241 MODULE DIN Rail Mounted MOSFET Redundancy Module
₨ 0
The PULS YR80.241 is a DIN-rail-mounted MOSFET redundancy module from the PULS DIMENSION series. It is designed to build 1+1 and N+1 redundant power supply systems.
Key Specifications
- Input Voltage: DC 12V–28V (rated 24V–28V DC)
- Inputs: 2 channels, each supporting up to 40A output current
- Output Current: 80A nominal output current (130A max short circuit / 160% peak load capability)
- Technology: Uses MOSFETs instead of standard diodes for decoupling, lowering heat generation and voltage drop
- Voltage Drop: ~49–95 mV typ. (approx. 2.7W typical power loss at 40A)
- Operating Temperature: -40°C to +70°C
- Dimensions: 46 x 124 x 127 mm (W x H x D)
- Weight: 440 g
- Safety & Approvals: UL 508, ATEX, IECEx, Marine ABS/DNV
- Ordering / Details: Available via distributors like.
