PULS QS10 POWER SUPPLY Single Phase 240W DIN Rail Industrial Power Supply
₨ 0

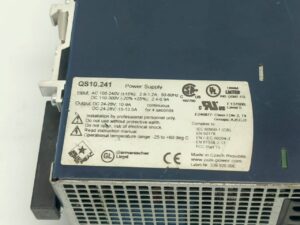

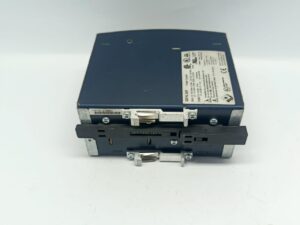

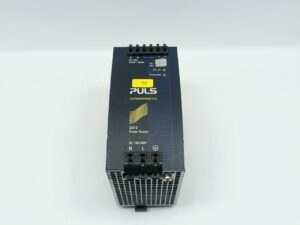

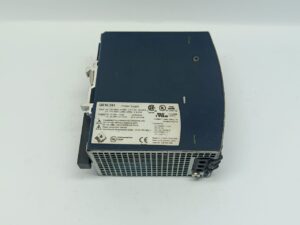

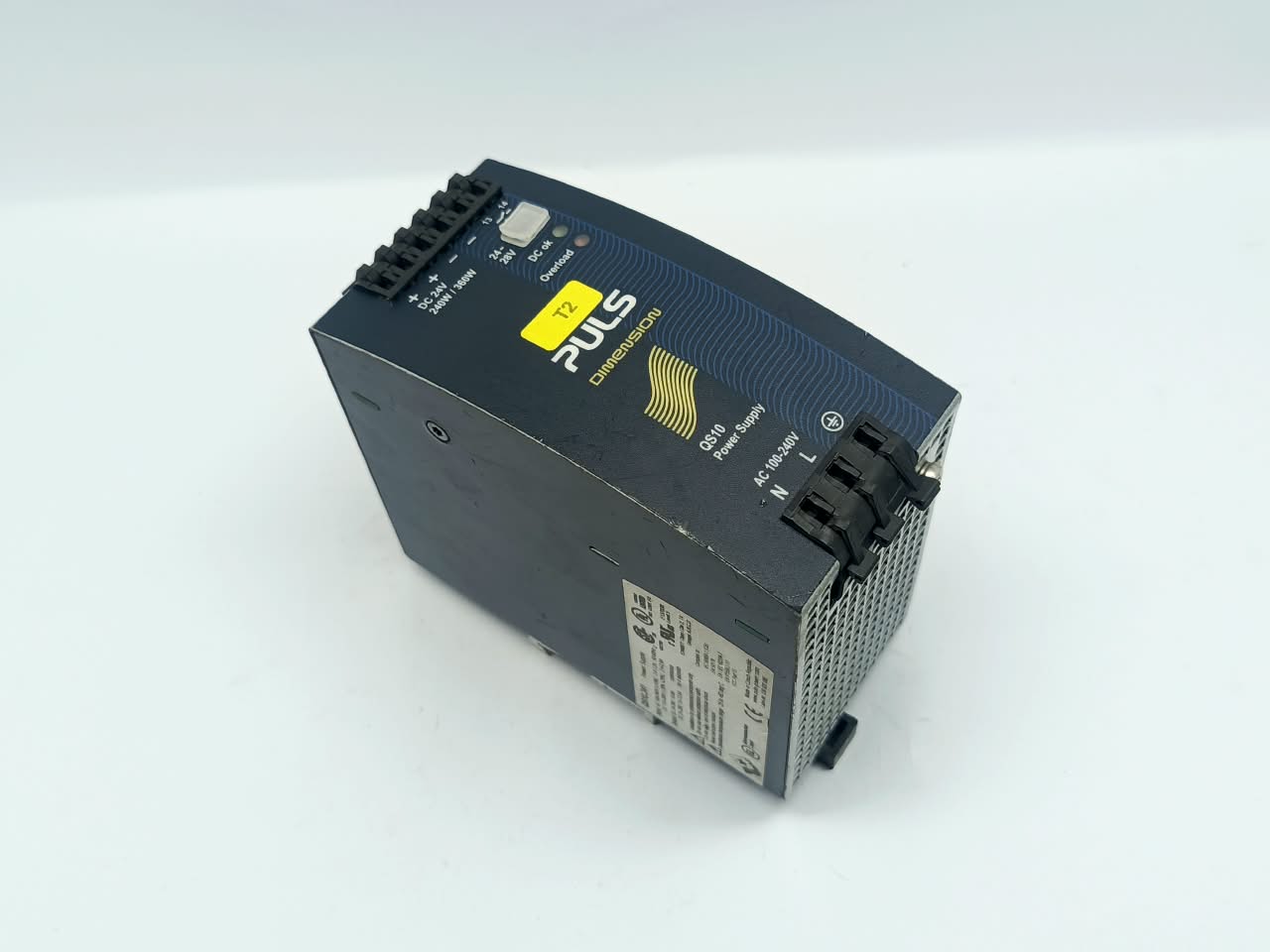

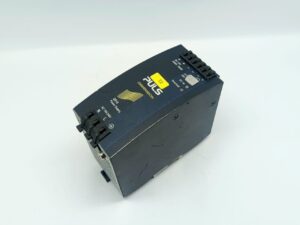

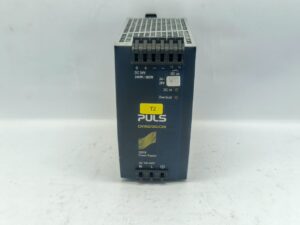

The PULS QS10.241 is a single-phase 240W DIN-rail industrial power supply from the PULS Dimension Q-Series.
Key Specifications (Model QS10.241)
- Input Voltage: AC 100–240V (wide range), DC 110–150V, with active power factor correction (PFC).
- Output Voltage: Nominal 24V DC (adjustable from 24V to 28V DC).
- Output Current: 10A at 24V (9A at 28V).
- Power Output: 240W continuous, plus a BonusPower reserve of up to 150% (360W) for peak loads or motor starting.
- Efficiency: Up to 93.5%.
- Dimensions & Weight: 60 mm (width) x 124 mm (height) x 117 mm (depth); weighs approximately 900g.
- Mounting: DIN-rail mount with quick-connect spring-clamp terminals.
- Operating Temperature: -25°C to +70°C (with full power up to +60°C).
- Approvals & Standards: UL 508, IEC 60950-1, IEC 61010-2-201, Class 1 Div 2, and Marine (ABS/DNV).
