OMRON S8VS-01505/ED2 POWER SUPPLY
₨ 0

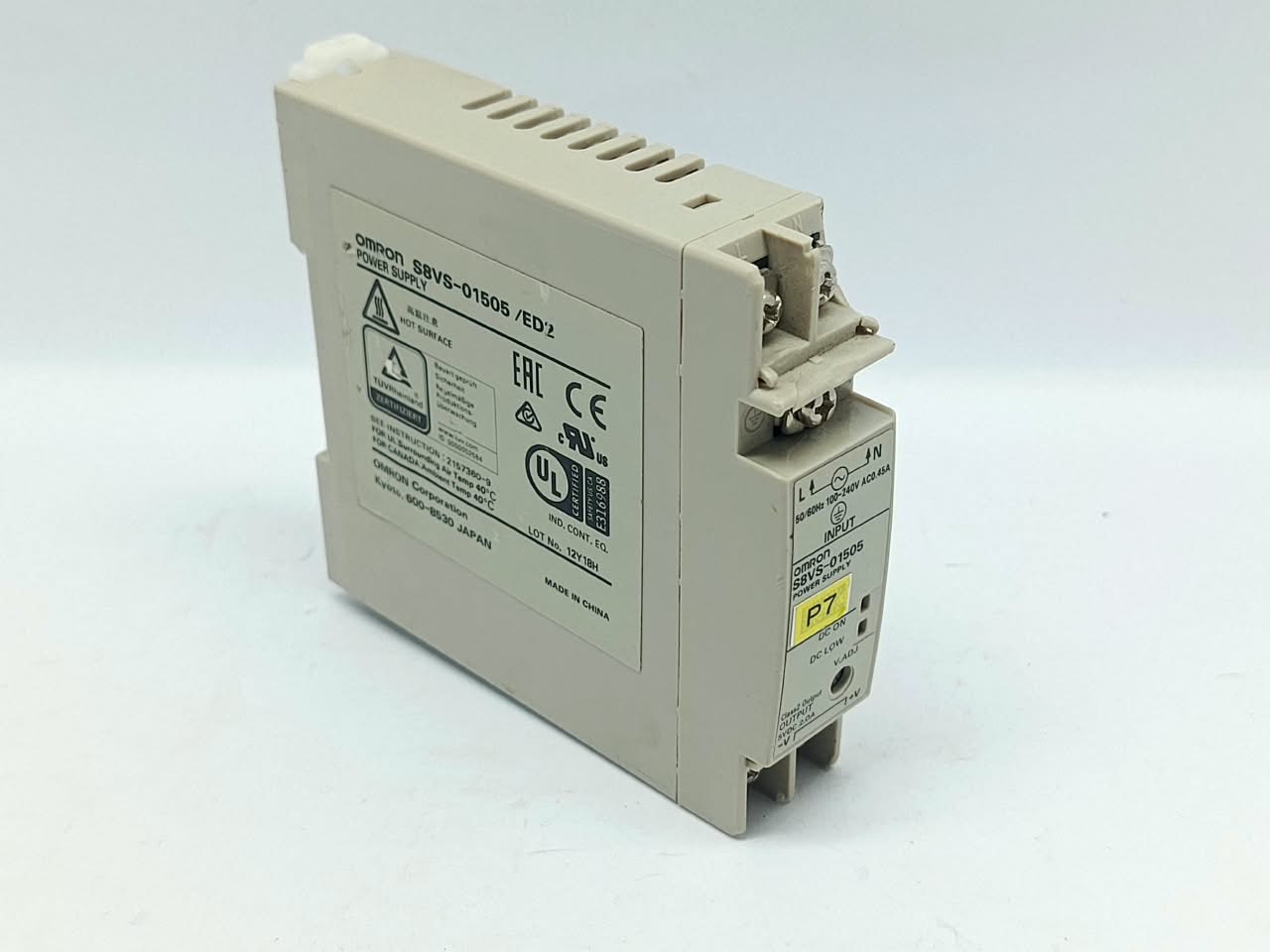

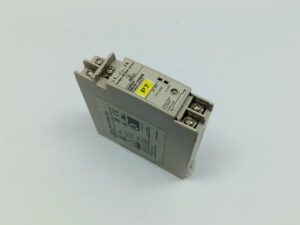

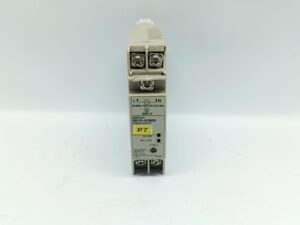

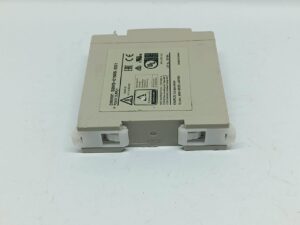

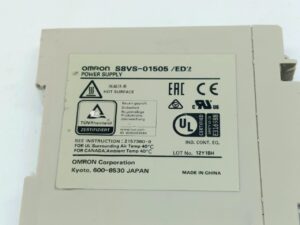

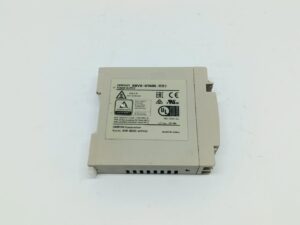

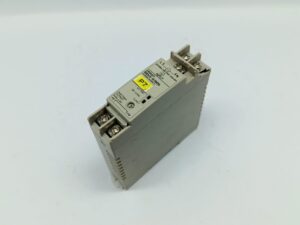

The Omron S8VS-01505 Switch Mode Power Supply is a compact, DIN-rail mounted industrial power supply unit rated at 15 W with a 5 VDC output.
Key Specifications
- Input Voltage: 100 to 240 VAC (allowable range: 85–264 VAC or 80–370 VDC), 50/60 Hz
- Output Voltage: 5 VDC (variable range: -10% to +15%, adjustable via V.ADJ)
- Output Current: 2.0 A (15 W power rating)
- Efficiency: ~73% to 74% typical
- Mounting Type: DIN track mounting (plastic case, 22.5 mm width)
- Dimensions: 22.5 mm (width) × 94.6 mm (height) × 96.4 mm (depth)
- Operating Temperature: -10 °C to +60 °C
- Status Indicators: Green DC ON indicator and red undervoltage alarm (DC LOW)
- Protections: Overload protection (automatic reset) and overvoltage protection (shut-off)
- Manufacturer Status: Marked as discontinued by Omron.
