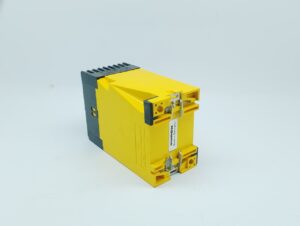

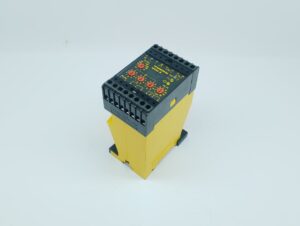

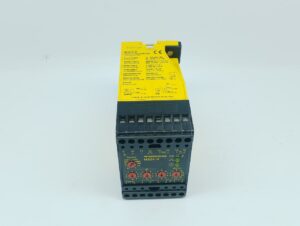

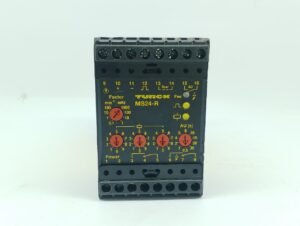

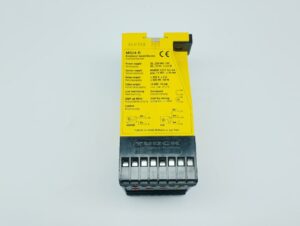

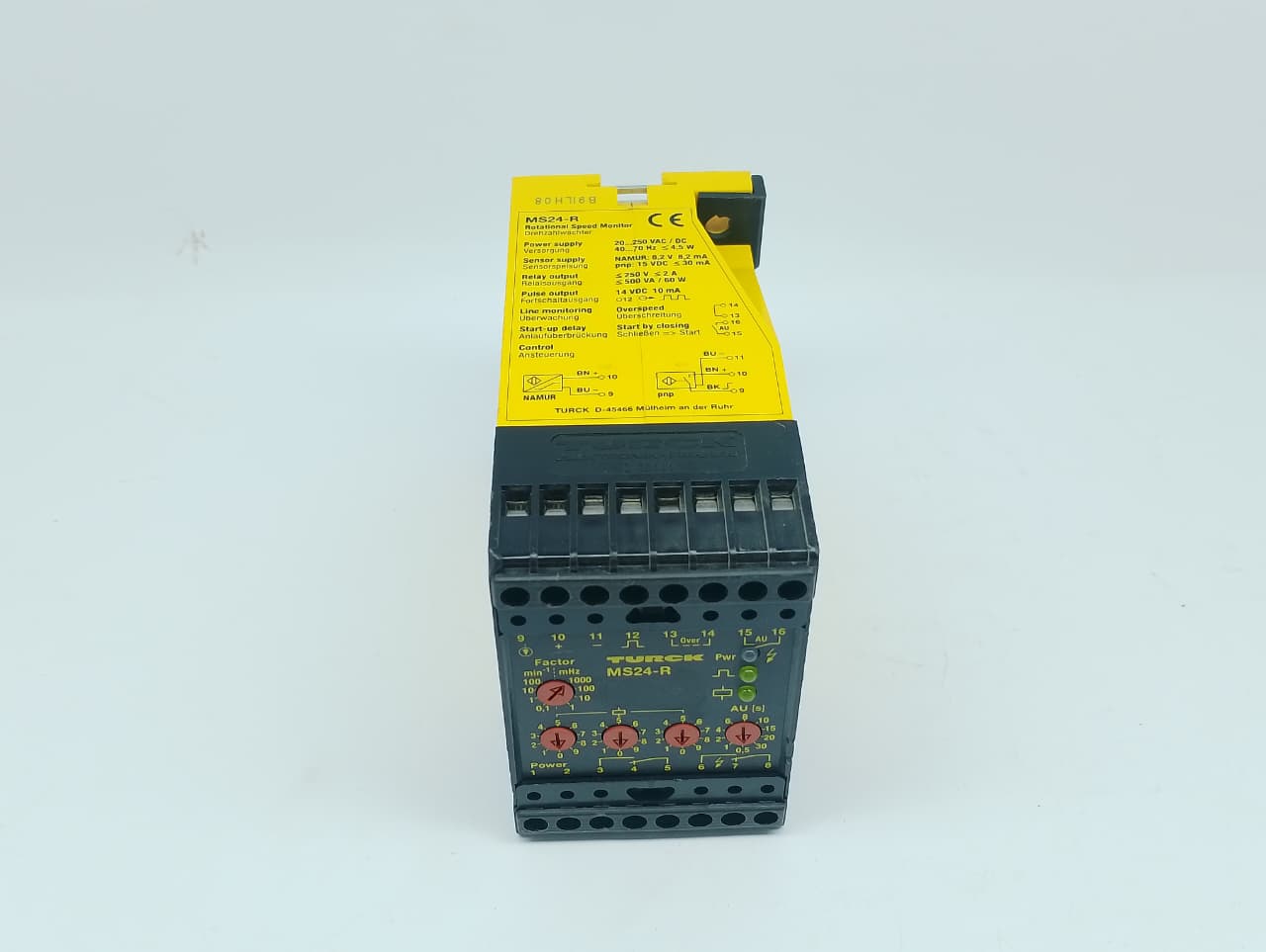

TURCK MS24-R Rotation Speed Monitor
₨ 0
The Turck MS24-R (Ident. no. 0519009) is a 1-channel digital rotation speed monitor used in industrial automation to detect overspeed or underspeed conditions in rotating equipment like conveyors, fans, and pumps.
Key Specifications
- Monitoring Range: 10 mHz to 1,666 Hz (0.6 to 100,000 min⁻¹ / rpm)
- Supply Voltage: 20 to 250 VAC (40–70 Hz) / 20 to 250 VDC
- Outputs: 2 change-over (C/O) relay outputs (1 limit value relay and 1 alarm relay), rated up to 2A at 250 VAC / 30 VDC
- Enclosure / Mounting: IP20 protection class, DIN rail mounting (50 mm width housing), using removable screw terminal blocks
- Operating Temperature: -25 °C to +60 °C
