STS 8370 Sirnach Sensor 100…500 mbar g 25…85 °C 103135
₨ 350,000

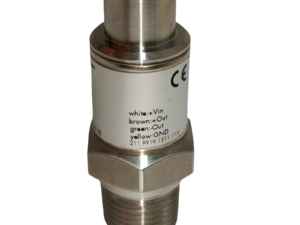

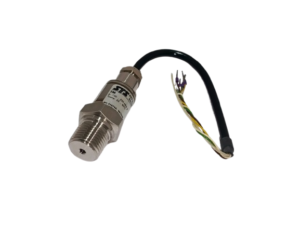

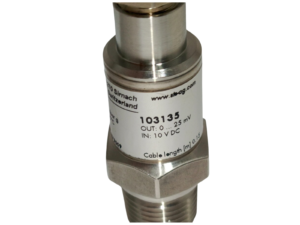

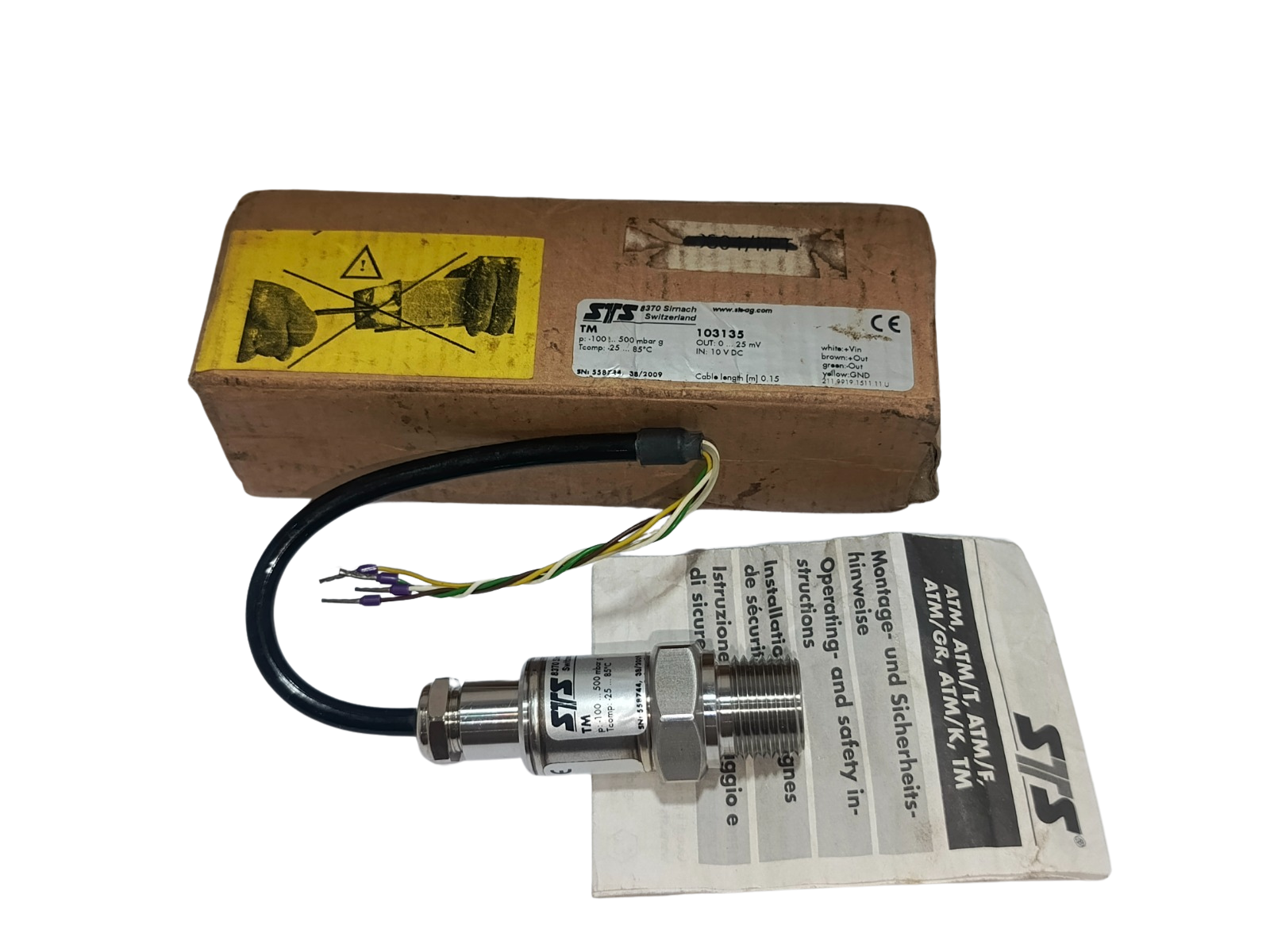

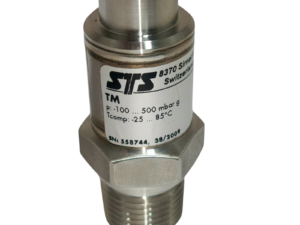

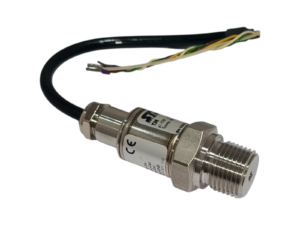

The STS 8370 (manufactured in Sirnach, Switzerland) is a highly precise industrial-grade piezoresistive pressure transmitter. It is designed to measure gauge pressure and temperature simultaneously with exceptional reliability, making it suitable for demanding industrial and environmental applications.
Core Specifications
- Pressure Range: 100 to 500 mbar g (Gauge pressure)
- Compensated Temperature Range: -25 to 85 °C (Media temperature allowed up to 100 °C depending on model configuration)
- Part Number: 103135
- Sensing Technology: Silicon strain gauge with high-quality stainless steel (316L) or Titanium construction
Key Features
- Customizability: STS’s modular design allows for highly customizable output signals (e.g., 4–20 mA or 0–10 VDC) and varying process connections (e.g., \(G \frac{1}{4}\) or \(\frac{1}{4} \text{ NPT}\)).
- High Precision: Thermal errors and pressure hysteresis are aggressively minimized during production, yielding a total error band (TEB) between ≤ ± 0.1% to 0.7% of full scale.
- Overpressure Tolerance: Capable of withstanding up to 3 times the nominal measurement range without suffering damage.
STS 8370 Sirnach Sensor 100…500 mbar g 25…85 °C 103135
