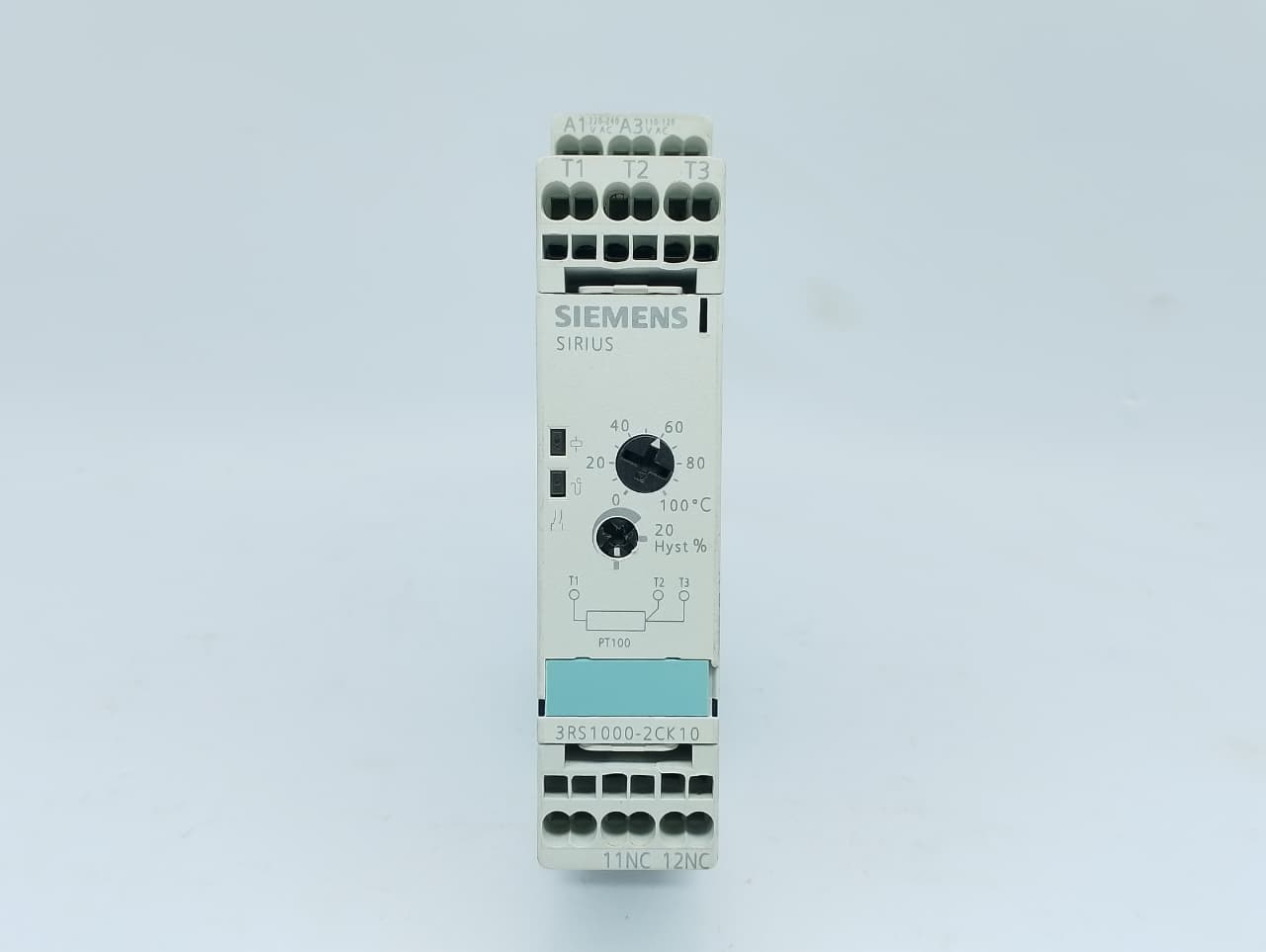

SIEMENS 3RS1000-2CK10 Analog Adjustable Temperature Monitoring Relay
₨ 0
The Siemens 3RS1000-2CK10 is an analog adjustable temperature monitoring relay from the Siemens SIRIUS 3RS10 series designed for over-temperature (overshoot) detection.
Key Specifications
- Manufacturer: Siemens
- Product Type: Temperature monitoring relay (Overshoot, 1 threshold value)
- Sensor Type: Pt100 resistance thermometer
- Measuring/Controlled Range: 0 °C to +100 °C
- Supply / Control Voltage: 110–120 V AC / 220–240 V AC
- Output Contacts: 1 NO + 1 NC (1 Normally Open + 1 Normally Closed)
- Contact Electrical Rating: 3 A / 250V AC
- Mounting Type: DIN rail mounting (22.5 mm width)
- Terminal Type: Spring-type / spring loaded terminals
SIEMENS 3RS1000-2CK10 Analog Adjustable Temperature Monitoring Relay
