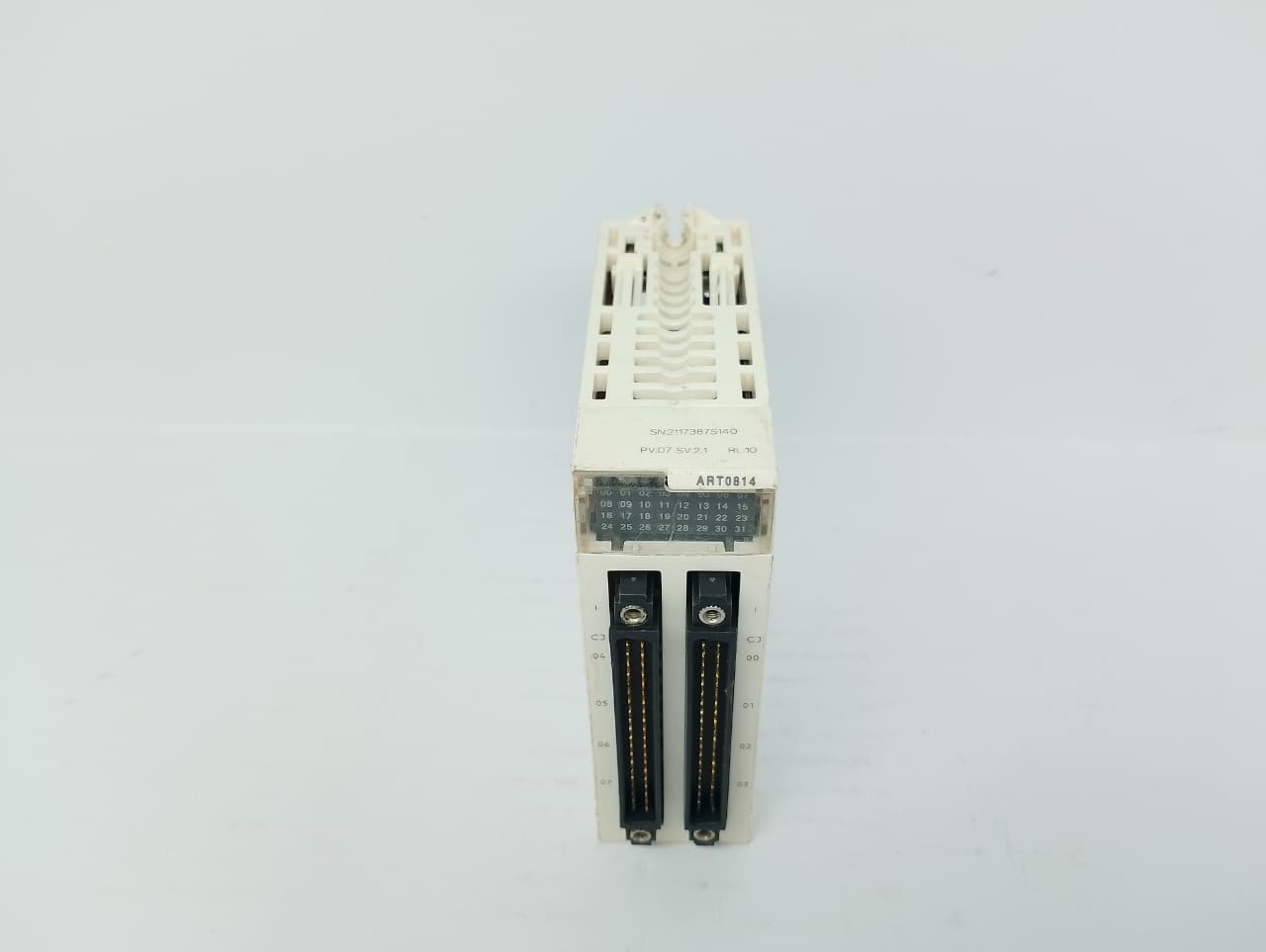

SCHNEIDER ELECTRIC BMXART0814 Modicon X80 Analog Isolated Low Level Input Module
₨ 0
The Schneider Electric BMXART0814 (frequently typed as BMXARTD814) is a Modicon X80 analog isolated low-level input module designed for use with Modicon M340 and M580 Programmable Logic Controller (PLC) systems. It is primarily engineered for precise temperature monitoring and data acquisition across high-precision industrial environments.
Key Specifications
- Channel Capacity: 8 isolated inputs.
- Input Types: Supports Thermocouples, RTD probes (such as Pt100/Pt1000, Cu10, Ni100/Ni1000 in 2, 3, or 4-wire configurations), resistors, and low-level voltage inputs (±40mV).
- Resolution & Accuracy: Features a 16-bit Sigma-Delta analog-to-digital conversion process with an acquisition resolution of 15 bits + sign.
- Noise Rejection: Equipped with built-in first-order digital filtering, providing a robust 120 dB common-mode rejection and 60 dB differential-mode rejection at 50/60 Hz.
- Electrical Connection: Utilizes 2 connectors with 40-way cabling paths (compatible with cables such as the BMXFCA302).
- Ingress Protection: IP20 rated enclosure.
Common Industrial Applications
According to EU Automation specifications, this hardware module is commonly integrated into:
- HVAC control and environmental monitoring systems.
- Chemical, pharmaceutical, and oil/gas process temperature management.
- Food and beverage thermal regulation lines.
- Machine health analytics utilizing preventive thermal maintenance.
