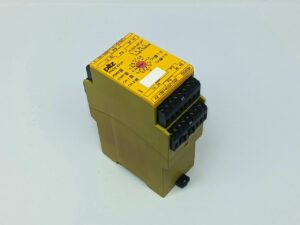

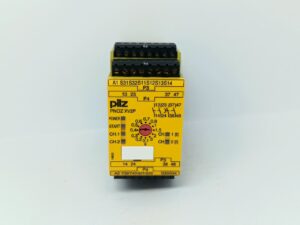

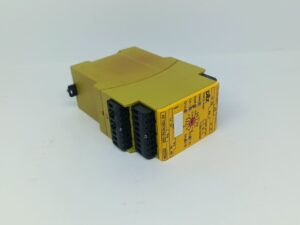

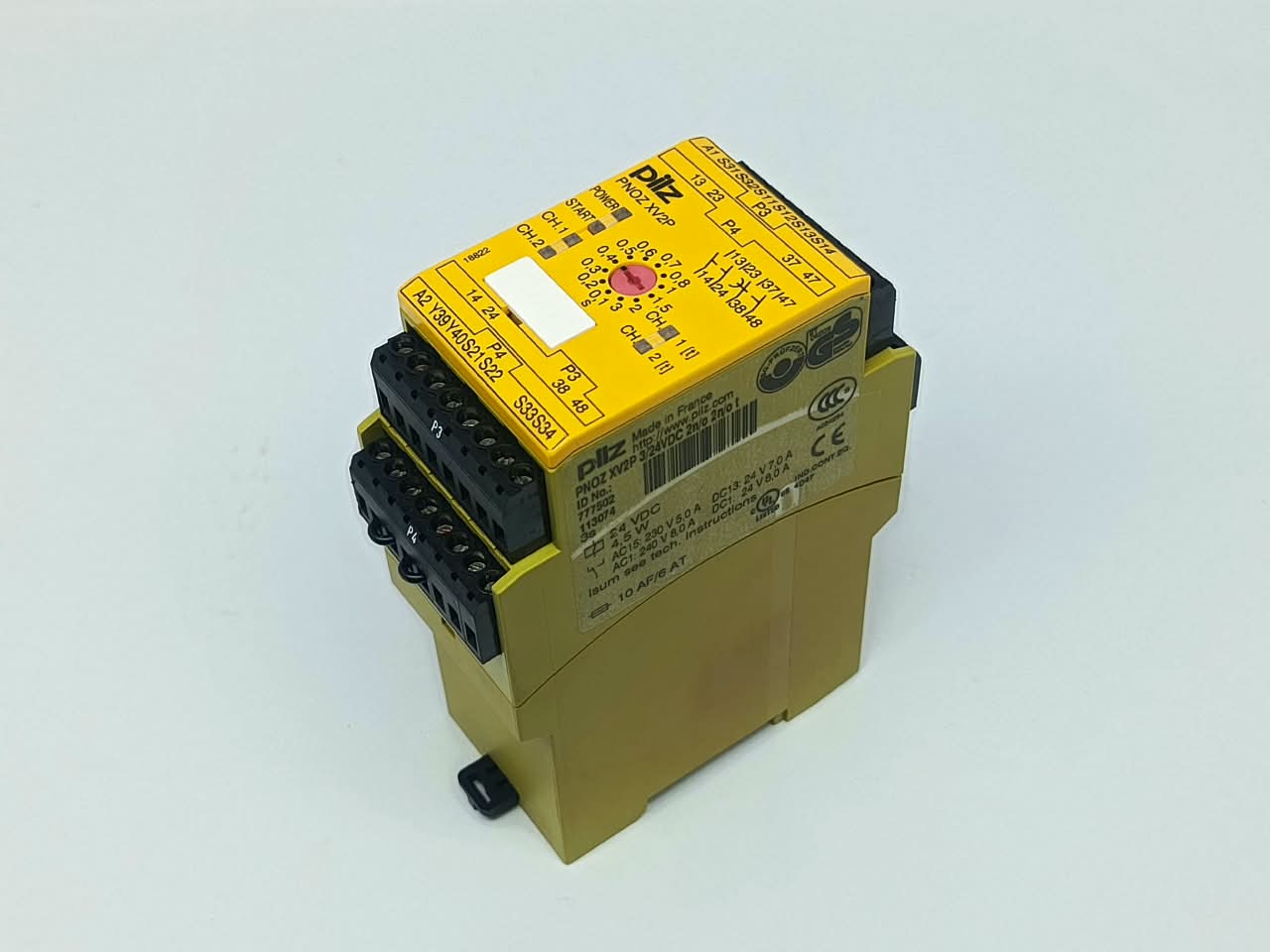

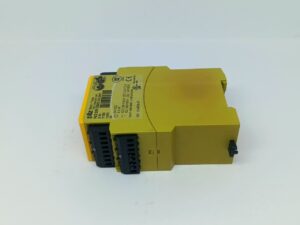

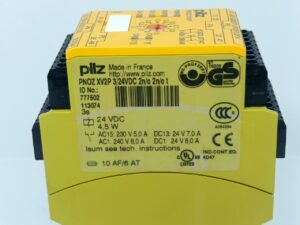

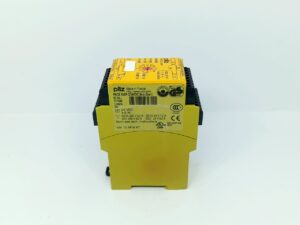

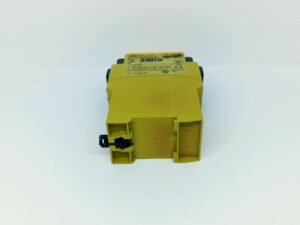

PILZ PNOZ XV2P 3/24VDC 2n/o 2n/o t ID: 777502 GTIN: 4046548009620 SAFETY RELAY
₨ 0
The Pilz PNOZ XV2P Safety Relay (Product ID: 777502) is a standalone safety relay used to monitor emergency stop pushbuttons and safety gates.
Key Specifications
- Supply Voltage (\(U_{B}\)): 24 V DC
- Outputs: 2 N/O (normally open) instantaneous safety contacts, and 2 N/O delayed-de-energisation (t) safety contacts.
- Release/Delay Time (t): Adjustable up to 3 seconds (0.1 – 3 s range).
- Width: 45 mm
- Terminals: Plug-in screw terminals (the ‘C’ version uses spring-loaded terminals).
- Input Wiring: Supports 1-channel or 2-channel wiring with or without short-circuit detection across contacts.
PILZ PNOZ XV2P 3/24VDC 2n/o 2n/o t ID: 777502 GTIN: 4046548009620 SAFETY RELAY
