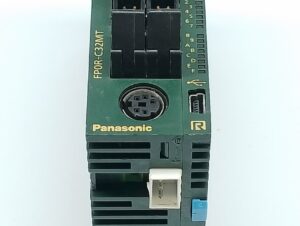

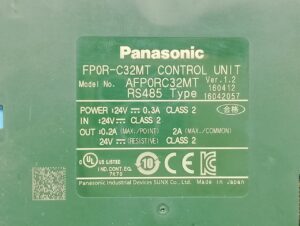

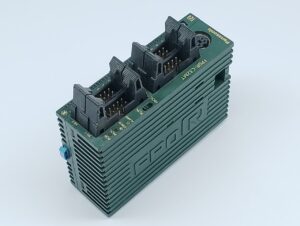

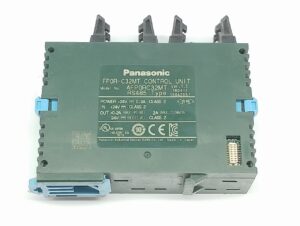

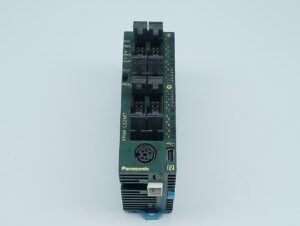

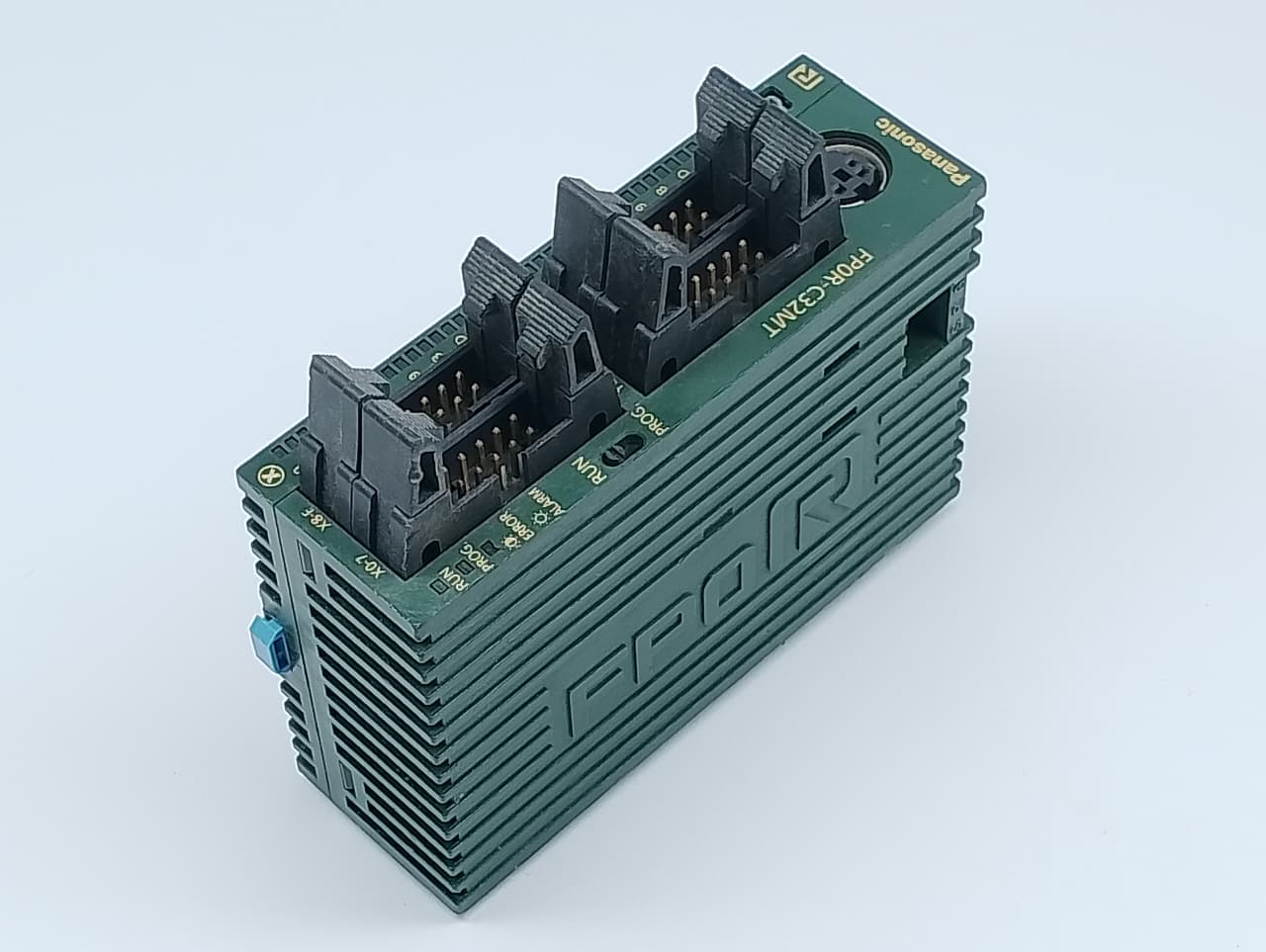

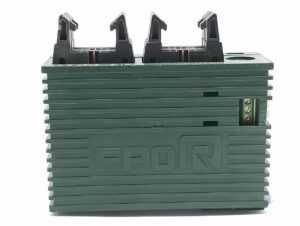

PANASONIC FP0R-C32MT CONTROL UNIT AFP0RC32MT RS485
₨ 0
The Panasonic FP0R-C32MT Control Unit (AFP0RC32MT) is a compact programmable logic controller (PLC) featuring a built-in RS-485 communication port.
Key Specifications
- Base I/O Points: 32 points total (16 digital inputs, 16 NPN transistor outputs)
- Max I/O Capacity: Expandable up to 128 points using up to 3 expansion units
- Memory Capacity: 32k steps EEPROM program memory and 32,765 words for data registers
- Processing Speed: 0.08 μs minimum for basic instructions
- Communication: RS-485 port (up to 115.2 kbps), supporting MEWTOCOL, MODBUS RTU, and general-purpose serial protocols
- Special Functions: 6 high-speed counters (50 kHz max) and built-in pulse/PWM outputs
- Power Supply: 24 V DC (operating range 20.4–28.8 V DC)
PANASONIC FP0R-C32MT CONTROL UNIT AFP0RC32MT RS485
