PANASONIC FP0R-C14RS CONTROL UNIT AFP0RC14RS
₨ 0

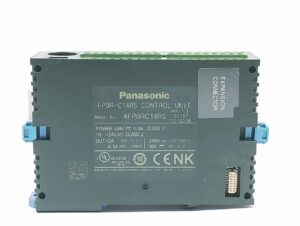

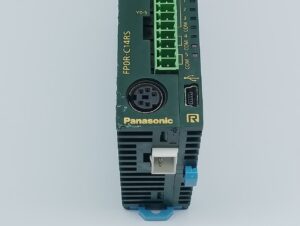

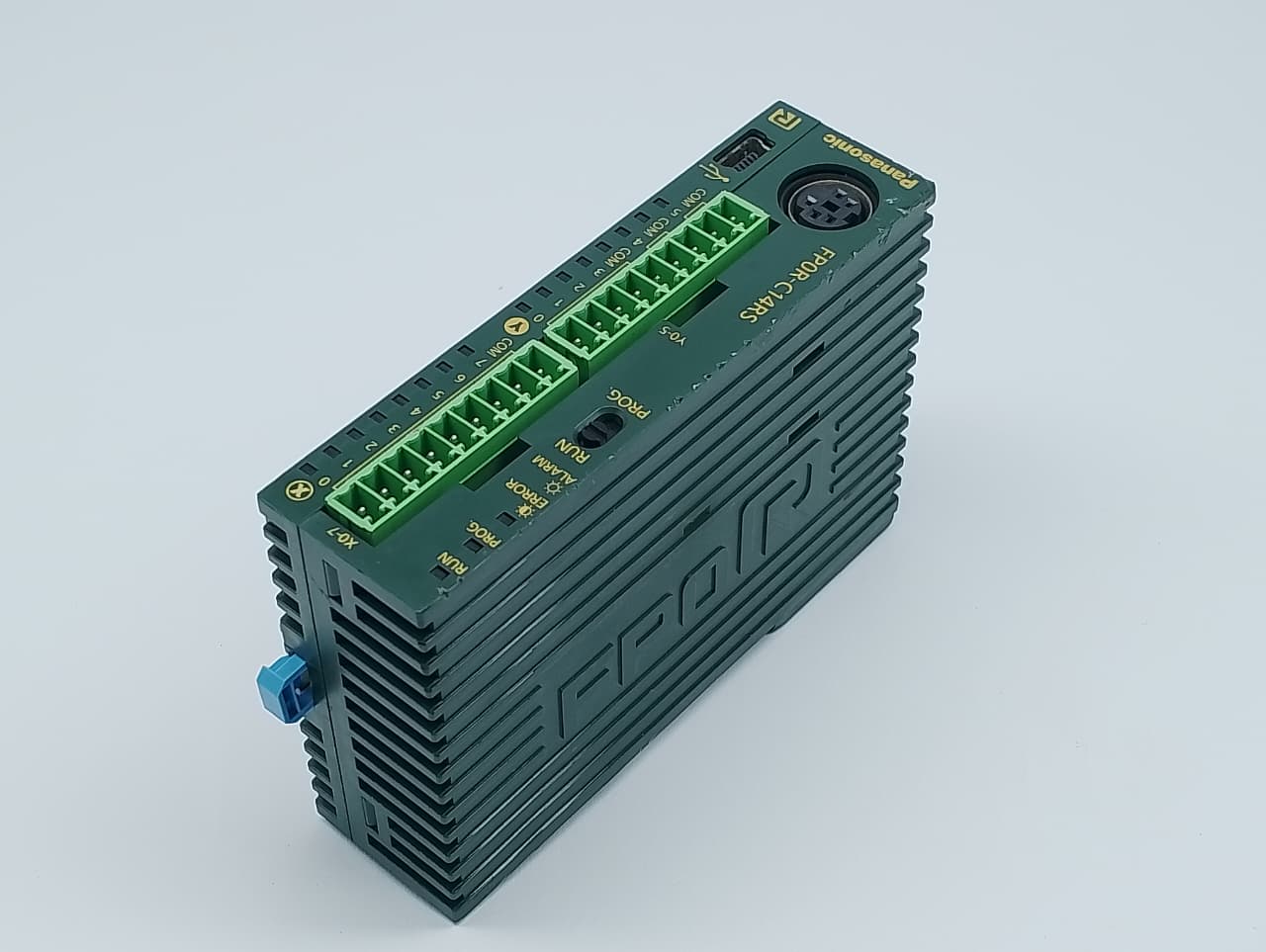

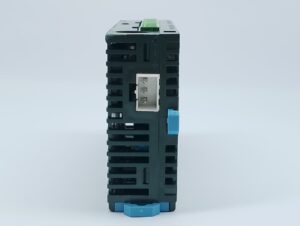

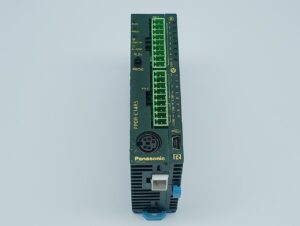

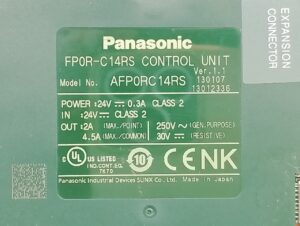

The Panasonic FP0R-C14RS Control Unit (AFP0RC14RS) is a compact Programmable Logic Controller (PLC) from the Panasonic FP0R Series.
Key Specifications
- I/O Configuration: 14 total points (8 digital inputs supporting PNP/NPN and 6 relay outputs).
- Power Supply: 24 V DC (operating range: 20.4 to 28.8 V DC).
- Program Memory: 16 k steps EEPROM (battery-less backup).
- Processing Speed: High-speed instruction processing down to 0.08 µs for basic instructions.
- Communication Ports: Equipped with RS232 and Mini-USB tool ports.
- Expansion Capability: Can be expanded up to 62 points (same type) or up to 110 points (mixed relay and transistor units).
- Output Rating: Relay output capacity of 2 A 250 V AC or 2 A 30 V DC per point (4.5 A per common).
PANASONIC FP0R-C14RS CONTROL UNIT AFP0RC14RS
