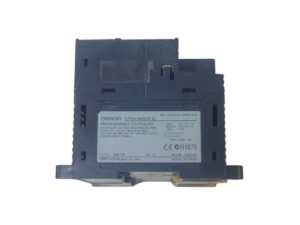

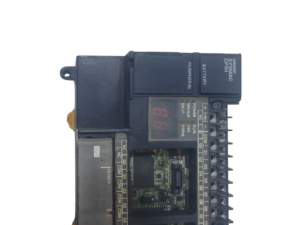

Omron CP1H-X4DT-D PLC high-speed, compact Programmable Logic Controller

Name: Omron CP1H-X4DT-D PLC high-speed, compact Programmable Logic Controller
SKU: 2353
Availability: InStock

₨ 40,000

The Omron CP1H-X4DT-D is a high-speed, compact Programmable Logic Controller (PLC) designed for multi-axis positioning and advanced machine control. It features 24 DC inputs, 16 NPN (sinking) transistor outputs, and a 24 VDC power supply. This “brick-style” CPU is ideal for demanding industrial automation tasks.

Key Hardware Specifications

The base unit packs extensive functionality into a compact footprint without needing immediate expansion modules:

Inputs/Outputs: 24 digital inputs (PNP/NPN) and 16 digital transistor outputs (NPN).
Positioning: Built-in 4-axis pulse output and 4-axis high-speed counter capabilities (ideal for servo or stepper motor control).
Memory & Speed: 20 K steps of program capacity and 32 K words of data memory, with a fast logic execution time of just 0.10 µs.
Connectivity: Built-in standard USB port for programming plus two available slots for optional communication boards (such as RS-232C, RS-485, or Ethernet).
Expandability: Supports up to 7 CP1W expansion modules to scale the system’s I/O.
