OMRON CJ1W-MD261 PLC Mixed Digital Input and Output Basic I/O Unit
₨ 0

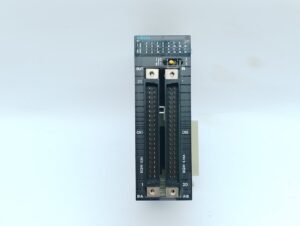

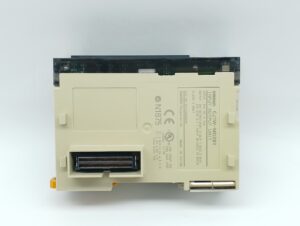

The Omron CJ1W-MD261 is a mixed digital input and output basic I/O unit for the CJ Series programmable logic controller (PLC) system.
Technical Specifications
- Digital Inputs: 32 points, supporting PNP/NPN input types at 24 VDC (4.1 mA) with 16 points per common.
- Digital Outputs: 32 points, NPN transistor sinking output type (12 to 24 VDC, 0.3 A) with 16 points per common.
- I/O Connection Type: Fujitsu/OTAX connector (plugs not included).
- Mounting Type: DIN Rail.
- Current Consumption: 0.14 A.
- Dimensions (H x W x D): 90 mm x 31 mm x 66.5 mm.
- Weight: 110 g.
OMRON CJ1W-MD261 PLC Mixed Digital Input and Output Basic I/O Unit
