Lyngso Marine OPTO OUT 24-1 C SLAVE D16 I16 I/O Expansion Board (062.497.002)

Lyngso Marine 062.497.002 Opto-Isolated Slave I/O Module

Keep your marine control networks and alarm telemetry systems running flawlessly with the Lyngso Marine SLAVE D16 I16 Expansion Card. This specialized print board acts as a remote distributed node interface within the ship’s central automation computers, communicating input/output state metrics from essential bridge instrumentation back to the engine room processors.

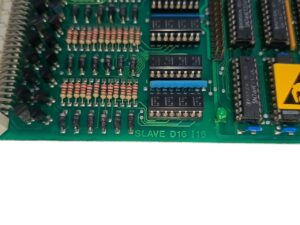

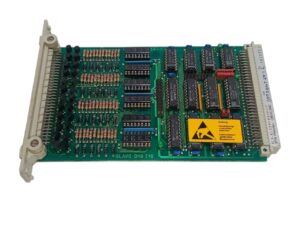

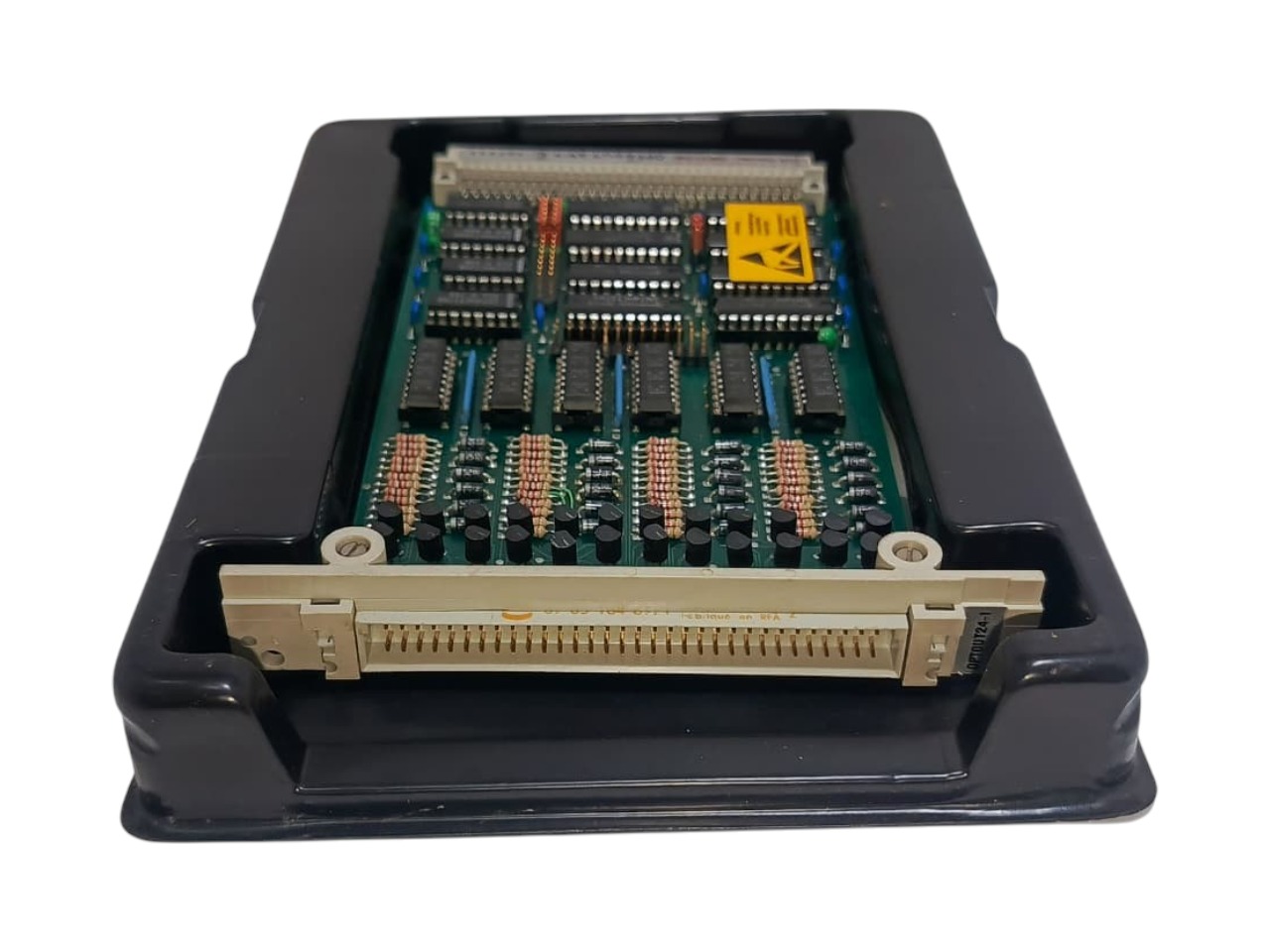

As highlighted in the close-up view (5.jpeg), the board incorporates a dense grid of Sharp PC817 high-isolation optocouplers. These components isolate dangerous voltage surges and high electrical noise loops common to massive shipboard networks from frying delicate CPU processing cores. The circuit layout features rows of precision metal-film resistors, robust switching diodes (1N4004), and bipolar transistors designed to handle continuous runtime thermal loads.

Technical Specifications:

• Brand: Lyngso Marine / Elcoprint (Vilshofen, Germany)

• Part Identifier Number: 062.497.002 / 8358

• Type Designation: OPTOOUT 24-1 C (OPTO OUT 241)

• Functional Layout: SLAVE D16 I16 (Distributed Digital Inputs / Outputs)

• Isolation Core Architecture: Sharp PC817 Photocoupler Grid

• Logic Processing ICs: SN74HCT374N Octal D-Type Flip-Flops, CD74HCT175E Quad Flip-Flops, PC74HCT688P Magnitude Comparators

• Hardware Connectivity Interface: Dual heavy-duty DIN 41612 gold-plated multi-pin edge sockets

• Target Automation Systems: Marine Engine Alarm Monitoring Systems (AMS), Main Propulsion Control Desks, Cargo Tank Monitoring Racks, Power Management Systems (PMS)

Key Features:

• Industrial Opto-Isolation Barrier: Utilizes authentic Sharp photocouplers to build a dependable galvanic isolation field between external marine sensors and the main logic backplane.

• Rugged German PCB Manufacturing: Produced by Elcoprint with heavy track copper trace layers and robust green solder-masking to fight off moisture and salty air corrosion inside marine engine rooms.

• Standardized Eurocard Mounting Profile: Fitted with premium guide frames and lock screws on the front panel trim for easy drop-in maintenance swapping inside modular industrial sub-racks.

• High-Speed Logic Switching: Employs standard low-power, high-speed CMOS digital logic ICs to handle rapid signal transits with zero communication delays.
