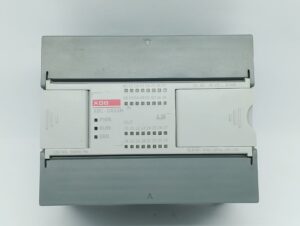

LS XBC-DR32H Compact Modular Programmable Logic Controller (PLC)
₨ 0
The LS XBC-DR32H is a compact modular programmable logic controller (PLC) from the LS Electric XGB Series (H-type high-performance economic standard main unit).
Key Specifications
- Power Supply: 100–240V AC, 50/60Hz
- Inputs: 16 points of DC 24V input (4mA/point)
- Outputs: 16 points of Relay output (2A/point resistive rating)
- Program Capacity: 15,000 steps
- Processing Speed: 83 ns per step
- Communication Interfaces: Built-in RS-232C and RS-485 ports
- Dimensions: Width 114 mm, height 90 mm, depth 64 mm
- Programming Tool: Configured using the [LS Electric XG5000 Software](index:0.6.3, 0.6.12) via a mini-USB loader cable or serial interface.
