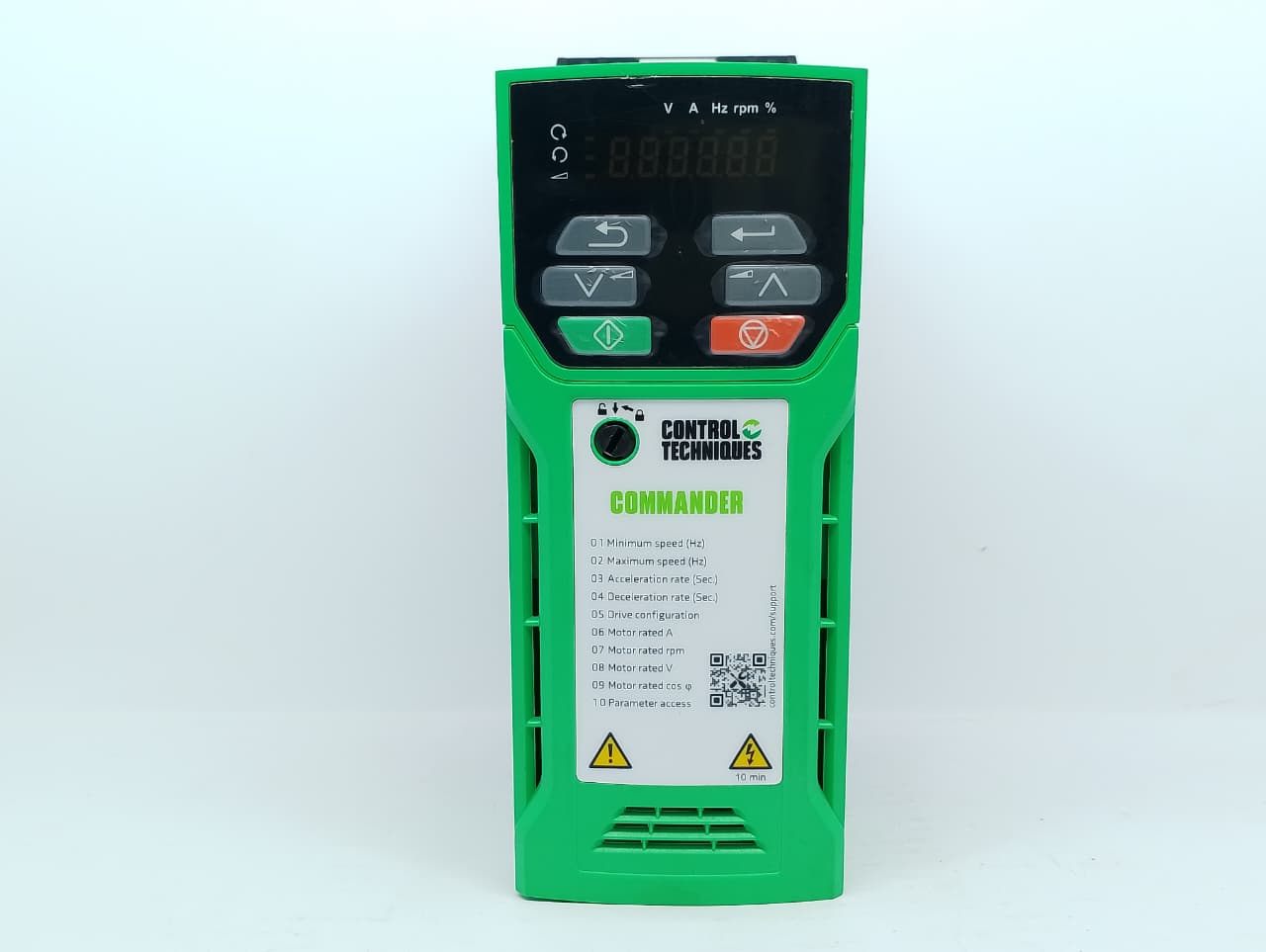

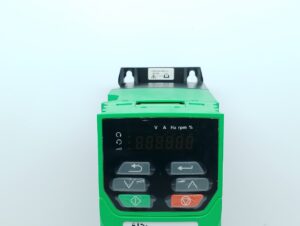

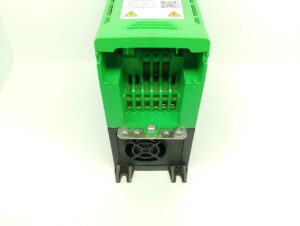

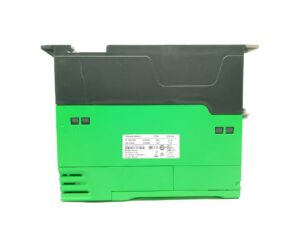

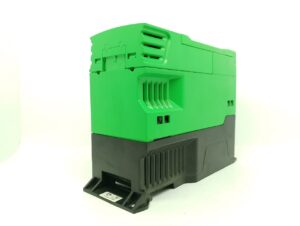

The Control Techniques C200-024 00032A is an industrial Commander C200 Series Variable Frequency Drive (VFD) / AC Inverter Drive. It is manufactured by Control Techniques (a Nidec brand) and is engineered for precise, high-performance general-purpose open-loop motor control.

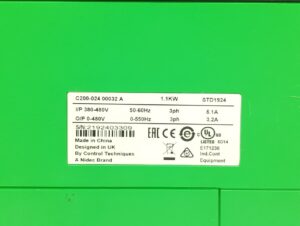

• Power Rating: 1.1 kW (1.5 HP)
• Input / Supply Voltage: 380–480 VAC, 3-Phase (+/- 10%)
• Output Current: Max continuous output of 3.2 Amps
• Phase Configuration: 3-Phase Input, 3-Phase Output
• Frame Size: Frame 2 (Dimensions: 205mm H x 75mm W x 150mm D)
• Enclosure Protection: IP20 / Panel Mount
• Overload Capacity: 150% for 60 seconds (heavy duty) or up to 180% for specific conveying profiles
• Control Modes: Open loop vector, V/f control, and Rotor Flux Control (RFC-A) algorithm.
