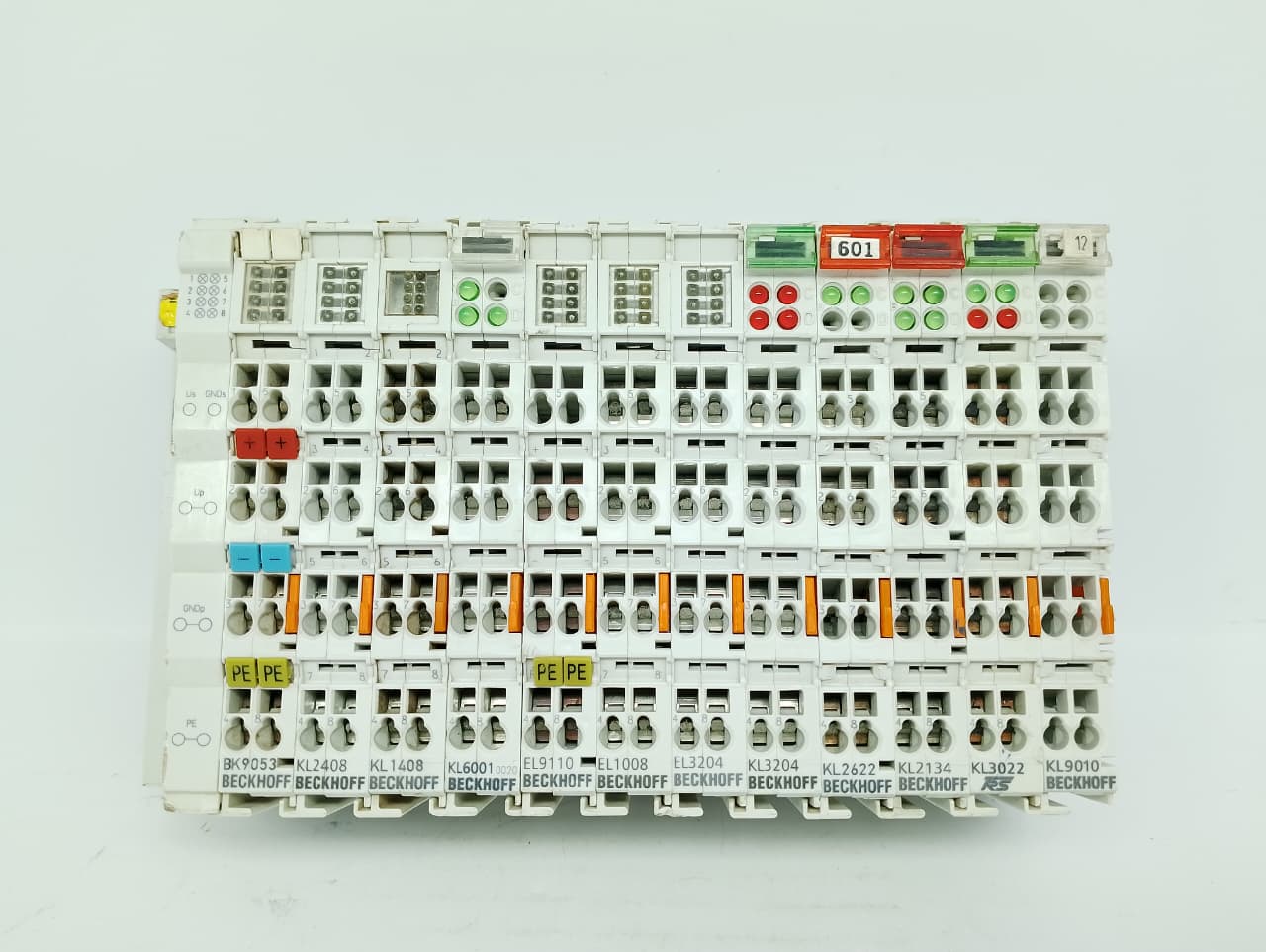

The Beckhoff KL2408 is an channel digital output bus terminal designed for industrial automation systems using the Beckhoff K-bus connection framework. It safely channels binary control signals from higher-level automation units down to field-level actuators with built-in 500 V electrical isolation.

• Outputs: 8 digital outputs featuring a 1-wire connection system optimized for single-ended wiring.
• Voltage & Current: Operates at a nominal 24 V DC and supplies up to 0.5 A continuous current per channel.
• Built-in Protection: Fully protected against reverse polarity, overloads, and short circuits (trips at short-circuit currents < 2 A).
• Diagnostics: Equipped with individual green LEDs to indicate the real-time signal state of each channel.
• Form Factor: Highly compact housing measuring 12 mm x 100 mm x 68 mm, designed for space-saving 35 mm DIN rail installation inside control cabinets.
