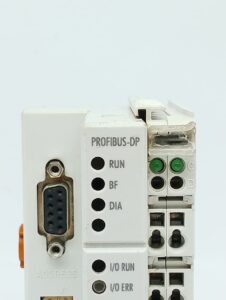

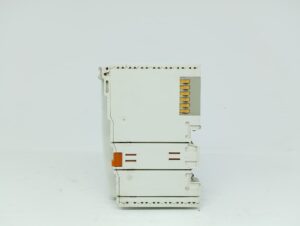

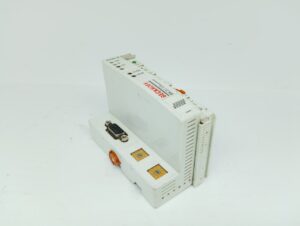

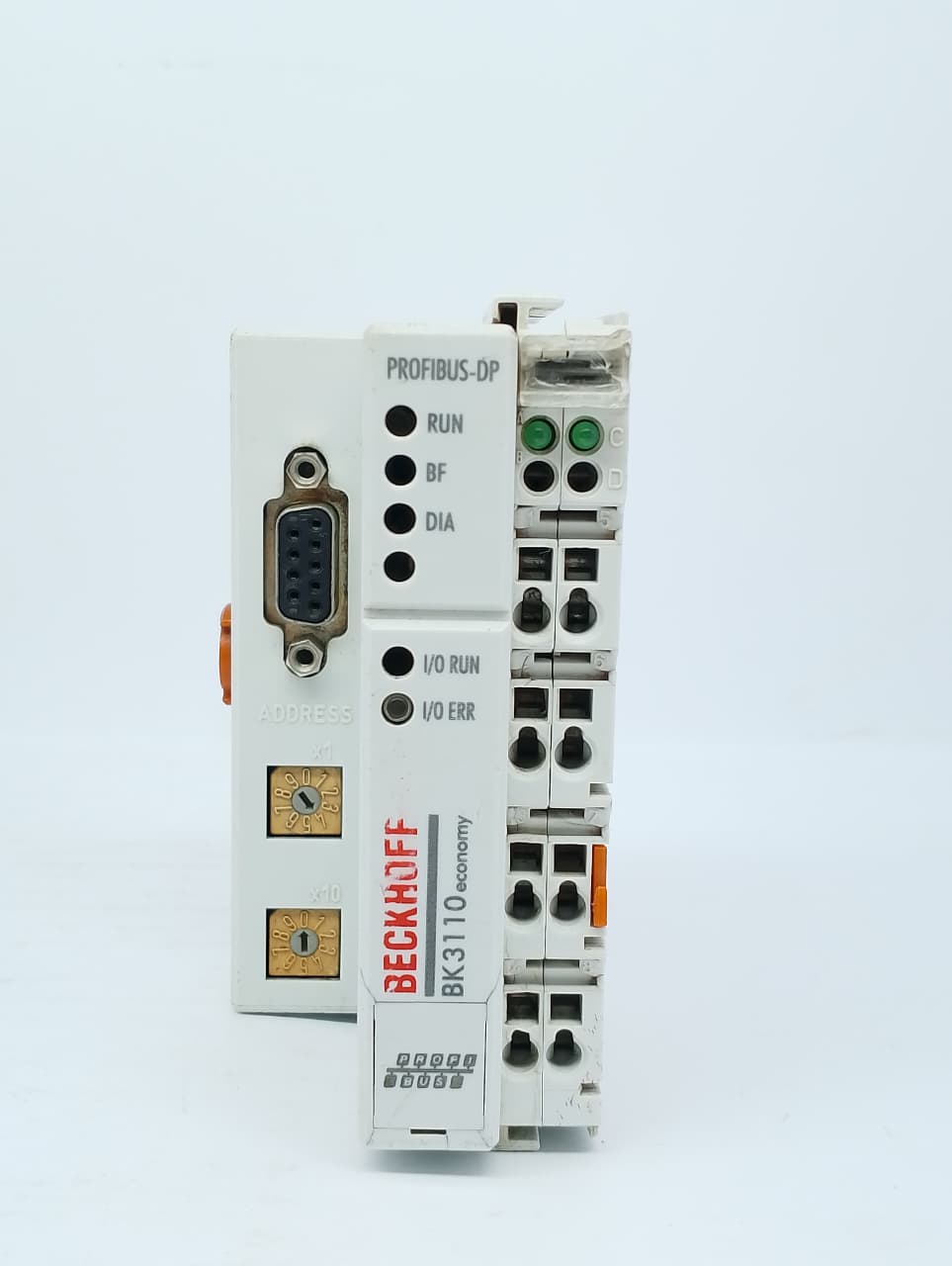

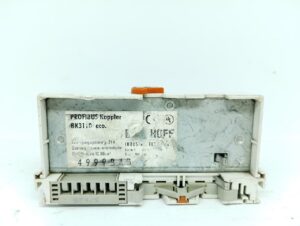

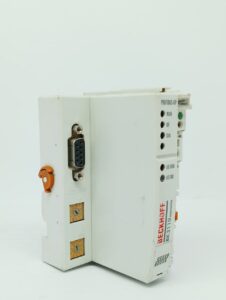

BECKHOFF BK3110 MODULE Beckhoff K-bus Terminals
₨ 0
The Beckhoff BK3110 is an economy PROFIBUS DP slave bus coupler designed to connect modular Beckhoff K-bus terminals to a industrial PROFIBUS network.
Key Features
- Network Interface: PROFIBUS DP slave.
- Terminal Capacity: Supports up to 64 modular K-Bus I/O terminals.
- Transmission Rate: Automatic detection from 9.6 kbaud up to 12 Mbaud.
- Process Image: Handles up to 32 bytes of input and 32 bytes of output data.
- Power Supply: Requires 24 V DC.
- Physical Design: Compact 65 mm housing width for standard DIN rail mounting.
- Diagnostics: Equipped with status LEDs for fast troubleshooting.
BECKHOFF BK3110 MODULE Beckhoff K-bus Terminals
