Azbil SDC26 Digital Indicating Controller C26TR0UA2000 | Precision PID Process Control

Azbil SDC26 Single-Loop Digital Process Controller

Achieve stable, ultra-precise regulation over your manufacturing environment with the Azbil SDC26 Digital Indicating Controller (C26TR0UA2000). As part of Azbil’s trusted Single Display Controller (SDC) lineup, this instrument utilizes advanced PID calculation logic and expert fuzzy control to smooth out process disturbances, eliminate temperature overshoots, and maximize system efficiency.

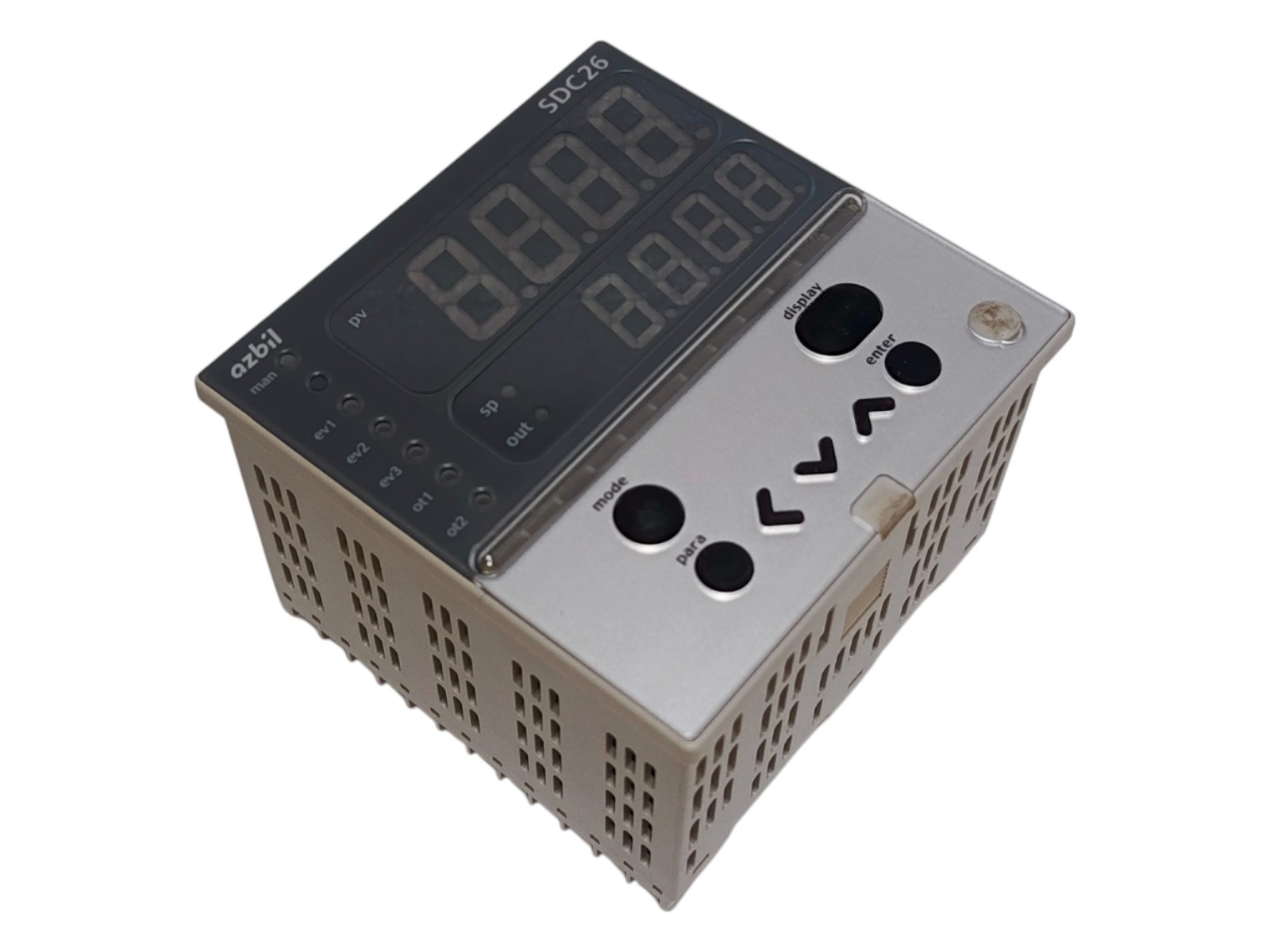

The front interface provides clear status indicator lights for manual operation mode (man), event outputs (ev1, ev2, ev3), and control outputs (ot1, ot2). This ensures that on-site technicians can perform rapid diagnostics, adjust set points via the tactile keys, and change parameter metrics instantly.

Technical Specifications:

• Brand: Azbil Corporation (formerly Yamatake)

• Model Series: SDC26 (Single Display Controller)

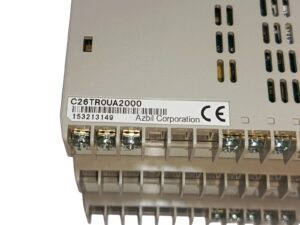

• Full Part Number: C26TR0UA2000

• Display Type: High-Visibility Dual 4-Digit 7-Segment LED

• Control Types: PID Control, On/Off Control

• Mounting Profile: $96 \times 96 \text{ mm}$ (Square DIN Panel Cutout Dimensions)

• Target Automation Fields: Industrial Furnaces, Food Processing Machinery, Plastic Extruders, HVAC Plants, Chemical Processing Systems

Key Features:

• Multi-Range Universal Inputs: Easily configured to accept standard thermocouples, RTDs (Resistance Temperature Detectors), DC voltage, or DC current signals.

• Real-Time Visual Diagnostics: Distinct individual status LEDs provide immediate feedback on active alarm relays and internal control states.

• Advanced PID Auto-Tuning: Minimizes setup complexity by automatically calculating optimal proportional, integral, and derivative parameters for your specific process loop.

• Robust Industrial Design: Features a durable, ventilated housing body designed to withstand thermal loads and electrical interference common to dense automation control panels.
