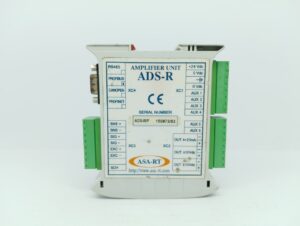

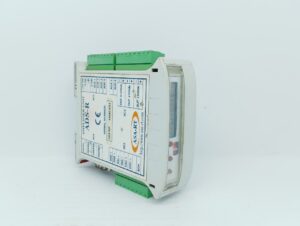

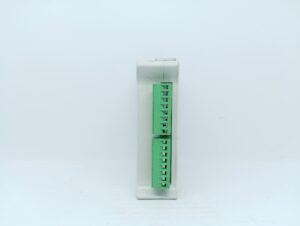

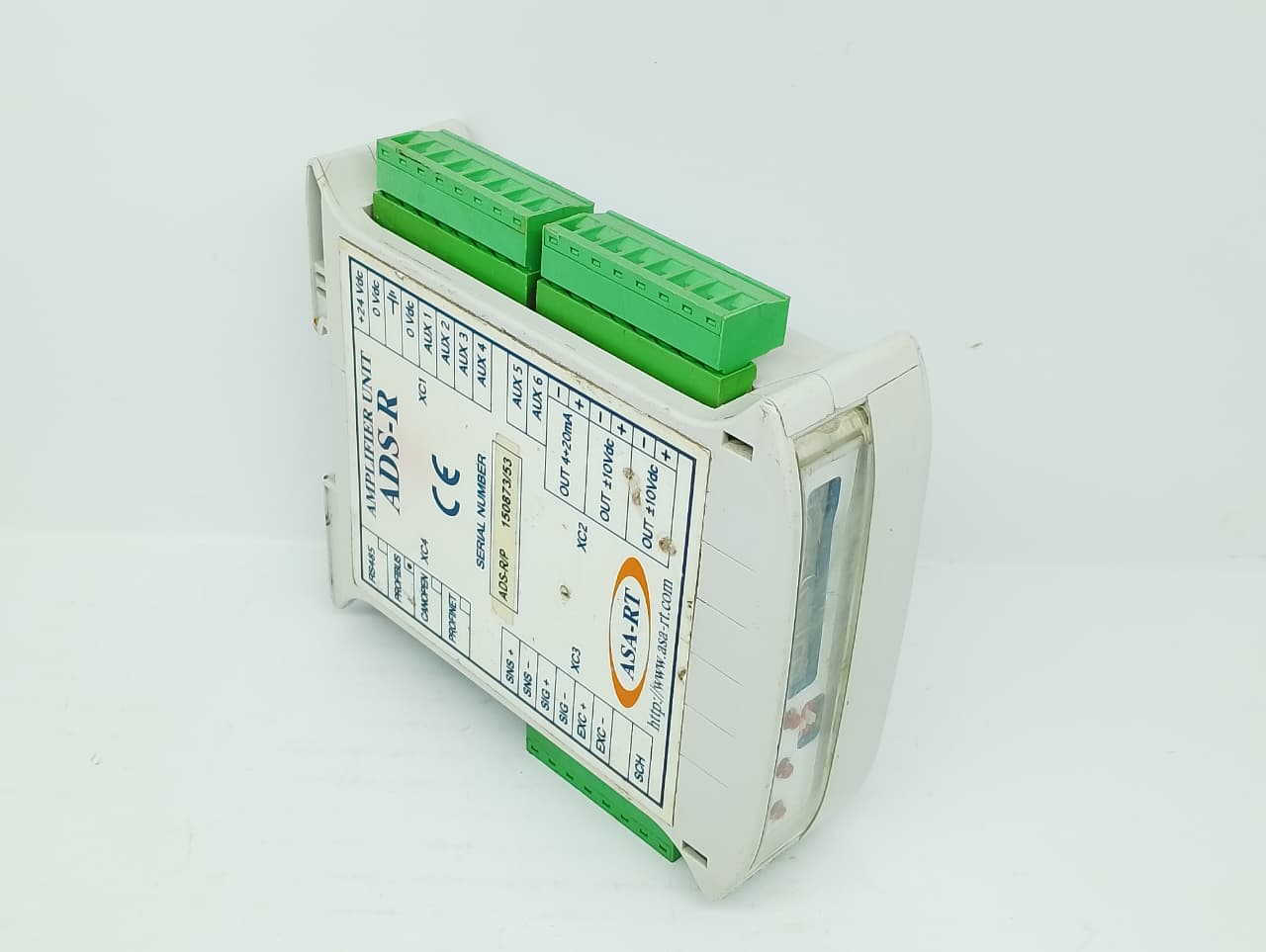

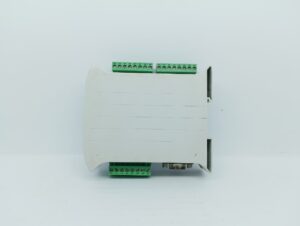

ASA-RT ADS-R/P 150873/53 Single Channel Digital Measuring Amplifier
₨ 0
The ASA-RT ADS-R is a single-channel digital measuring amplifier designed for strain gauge bridges, load cells, and force sensors in industrial automation.
Key Technical Specifications
- Power Supply: 24 VDC ±10%
- Bridge Supply: 5 VDC / 60 mA (supports up to 4 load cells at 350 Ohms in parallel)
- Acquisition Circuit: 24-bit ADC converter with programmable gain

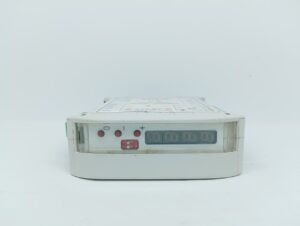

- Display & Interface: 5-digit LED display with a 3-button standard interface for zeroing and gain adjustment
- Outputs: 2 analog outputs (±10 VDC) and 1 analog output (4–20 mA), plus 2 opto-isolated digital inputs/outputs
- Communication Interfaces: Standard configuration with optional modules for RS485, CANopen, Profibus DP, or Profinet I/O
- Mounting: DIN rail mounting (23 mm or 35 mm width).
ASA-RT ADS-R/P 150873/53 Single Channel Digital Measuring Amplifier
