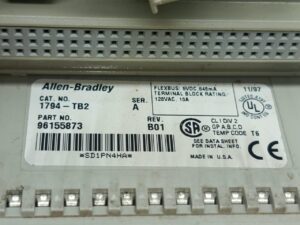

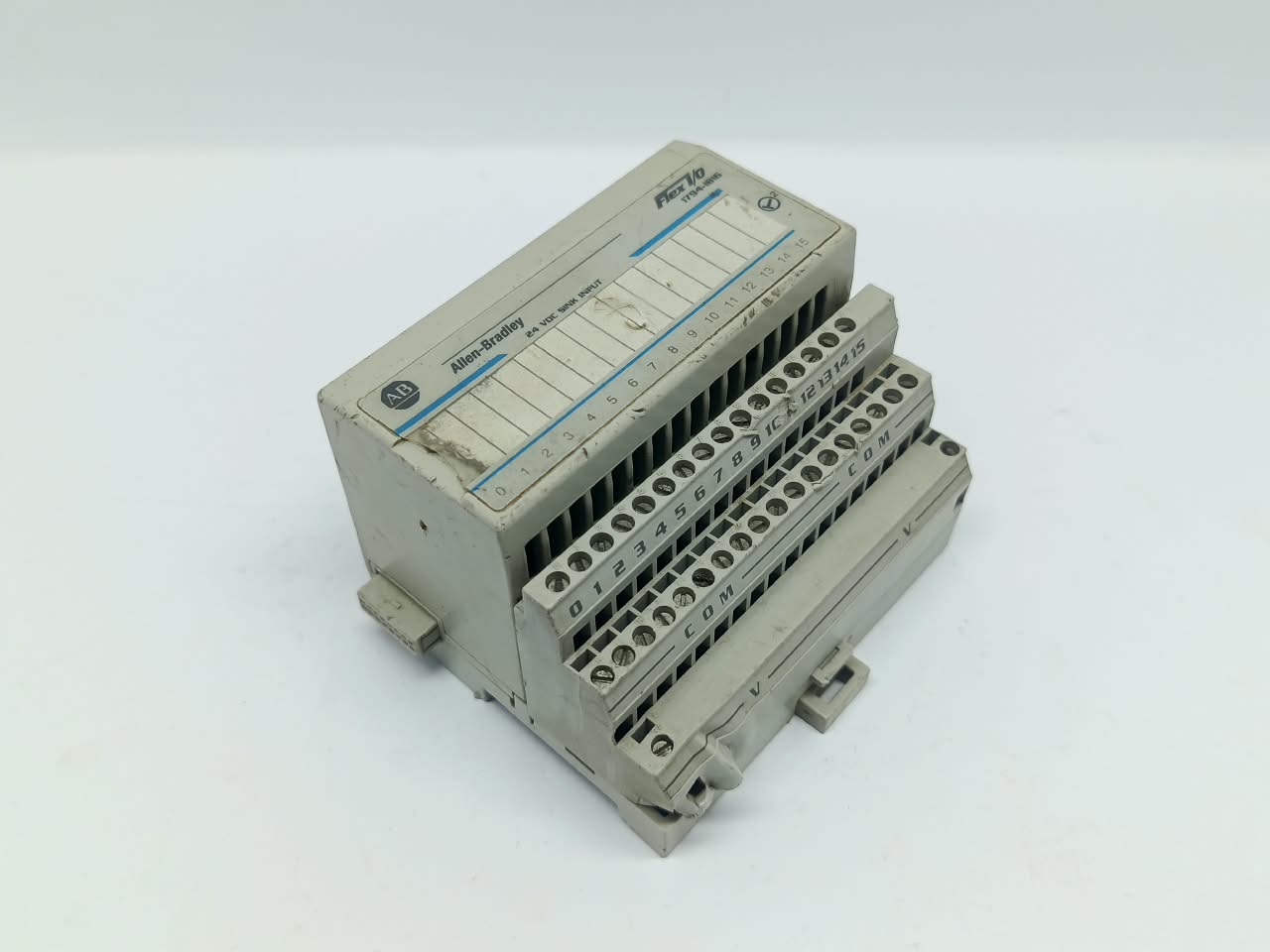

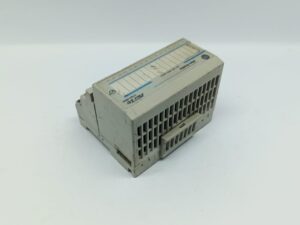

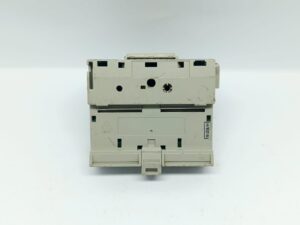

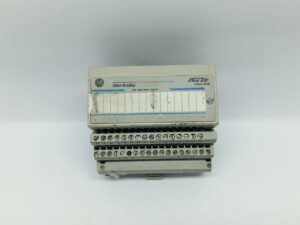

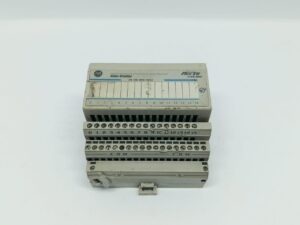

ALLEN BRADLEY 1794-TB2 Terminal Base Unit
₨ 0
The Allen-Bradley 1794-TB2 is a terminal base unit designed for the Rockwell Automation FLEX™ I/O distributed system. It provides the physical wiring connections and mounting base to house removable FLEX I/O modules.
Key Specifications
- Type: FLEX™ I/O Terminal Base
- I/O & Terminal Layout: 16 I/O terminals, 8 common terminals, and 2 +voltage terminals
- Termination Type: Screw clamp / cage clamp design
- Wire Size: Accommodates 24 to 16 AWG (0.21 to 1.3 mm² or up to 2.5 mm² depending on variant) copper wire
- Maximum Current Rating: 10 A per terminal
- Voltage Rating: 125 V AC/DC continuous isolation/supply voltage
- Mounting: DIN rail or panel mount (Open style, IP20 rated)
- Operating Temperature: -20 °C to +55 °C (-4 °F to 131 °F)
